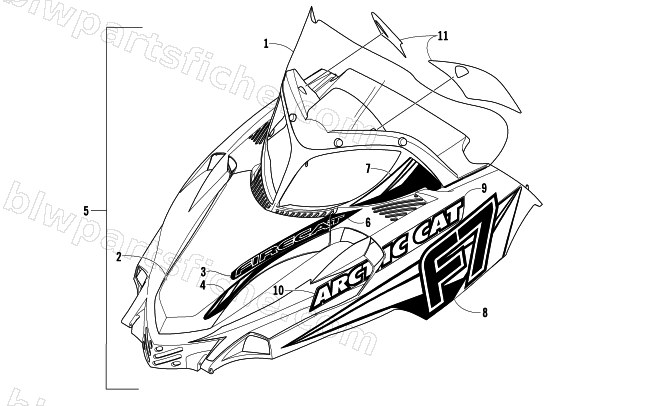

2004 Arctic Cat FIRECAT 700 SNO PRO 1.375 LIMITED EDITION — HOOD AND WINDSHIELD ASSEMBLY
2004 FIRECAT 700 SNO PRO 1.375 LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3606-019 | WINDSHIELD,RACE-CHROME W/GRAPHIC | 1 | $258.95 | |
| 2 | 1718-498 | COVER, BLK TA HOOD-W/DECALS | 1 | $253.95 | |
| 2 | 1718-497 | COVER, GRN TA HOOD-W/DECALS | 1 | $253.95 | |
| 2 | 1718-499 | COVER, RED TA HOOD-W/DECALS | 1 | $253.95 | |
| 3 | 5611-654 | DECAL,COVER-UPR RH | 1 | $28.95 | |
| 3 | 5611-655 | DECAL,COVER-UPR LH | 1 | $155.95 | |
| 4 | 5611-668 | DECAL,COVER-RH BLK | 1 | $40.95 | |
| 4 | 5611-669 | DECAL,COVER-LH BLK | 1 | $41.95 | |
| 4 | 5611-188 | DECAL,COVER-RH | 1 | $34.95 | |
| 4 | 5611-189 | DECAL,COVER-LH | 1 | $34.95 | |
| 4 | 5611-678 | DECAL,COVER-RH RED | 1 | $40.95 | |
| 4 | 5611-679 | DECAL,COVER-LH RED | 1 | $40.95 | |
| 5 | 1718-490 | HOOD, BLK TA-W/DECALS (F7 CARB) | 1 | $1,487.95 | |
| 5 | 1718-485 | HOOD, GRN TA-W/DECALS (F7 CARB) | 1 | $1,487.95 | |
| 5 | 1718-495 | HOOD, RED TA-W/DECALS (F7 CARB) | 1 | $1,487.95 | |
| 6 | 5611-656 | DECAL,HOOD-UPR RH | 1 | $79.95 | |
| 6 | 5611-657 | DECAL,HOOD-UPR LH | 1 | $72.95 | |
| 7 | 5611-200 | DECAL,HOOD-LIGHT RH | 1 | $35.95 | |
| 7 | 5611-201 | DECAL,HOOD-LIGHT LH | 1 | $37.95 | |
| 8 | 5611-648 | DECAL,HOOD-RH "F7" | 1 | $84.95 | |
| 8 | 5611-649 | DECAL,HOOD-LH "F7" | 1 | $256.95 | |
| 9 | 5611-666 | DECAL,HOOD-VENT RR RH BLK | 1 | $35.95 | |
| 9 | 5611-667 | DECAL,HOOD-VENT RR LH BLK | 1 | $33.95 | |
| 9 | 5611-186 | DECAL,HOOD-VENT RR-RH | 1 | $43.95 | |
| 9 | 5611-187 | DECAL,HOOD-VENT RR-LH | 1 | $88.95 | |
| 9 | 5611-676 | DECAL,HOOD-VENT RR RH RED | 1 | $33.95 | |
| 9 | 5611-677 | DECAL,HOOD-VENT RR LH RED | 1 | $33.95 | |
| 10 | 5611-664 | DECAL,HOOD-VENT FWD RH BLK | 1 | $193.95 | |
| 10 | 5611-665 | DECAL,HOOD-VENT FWD LH BLK | 1 | $215.95 | |
| 10 | 5611-184 | DECAL,HOOD-VENT FWD-RH | 1 | $85.95 | |
| 10 | 5611-185 | DECAL,HOOD-VENT FWD-LH | 1 | $85.95 | |
| 10 | 5611-674 | DECAL,HOOD-VENT FWD RH RED | 1 | $164.95 | |
| 10 | 5611-675 | DECAL,HOOD-VENT FWD LH RED | 1 | $284.95 | |
| 11 | 5611-650 | DECAL,HOOD-CONSOLE RH | 1 | $112.95 | |
| 11 | 5611-651 | DECAL,HOOD-CONSOLE LH | 1 | $112.95 |
