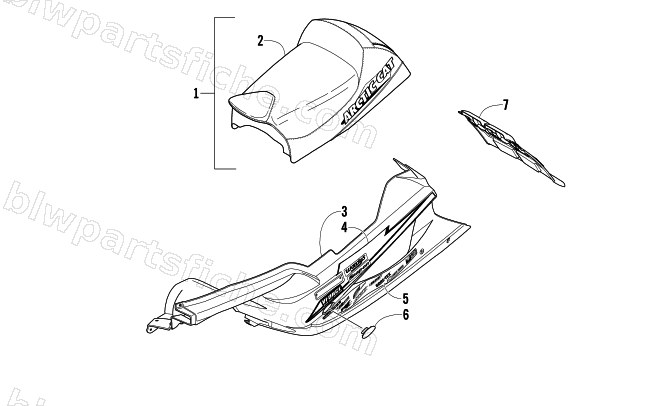

2004 Arctic Cat FIRECAT 700 SNO PRO 1 LIMITED EDITION — BELLY PAN, SEAT, AND SNOWFLAP TEAM ARCTIC BLACK
2004 FIRECAT 700 SNO PRO 1 LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 7997-593 | SEAT,BLK-MFG ASSY | 1 | $728.95 | |
| 2 | 2706-471 | COVER,SEAT-BLK W/GRAPHIC | 1 | $448.95 | |
| 3 | 2706-224 | BELLY PAN,SNO PRO BLK-RH ROUTED | 1 | $187.95 | |
| 3 | 2706-225 | BELLY PAN,SNO PRO BLK-LH ROUTED | 1 | $209.95 | |
| 4 | 5611-670 | DECAL,BELLY PAN-UPR RH BLK | 1 | $67.95 | |
| 4 | 5611-671 | DECAL,BELLY PAN-UPR LH BLK | 1 | $67.95 | |
| 5 | 5611-672 | DECAL,BELLY PAN-LWR RH BLK | 1 | $82.95 | |
| 5 | 5611-673 | DECAL,BELLY PAN-LWR LH BLK | 1 | $82.95 | |
| 6 | 2606-650 | PANEL,CLUTCH ACCESS-BLACK | 1 | $32.95 | |
| 7 | 3606-332 | SNOWFLAP,BLK-W/5611-202 DECAL | 1 | $128.95 |
