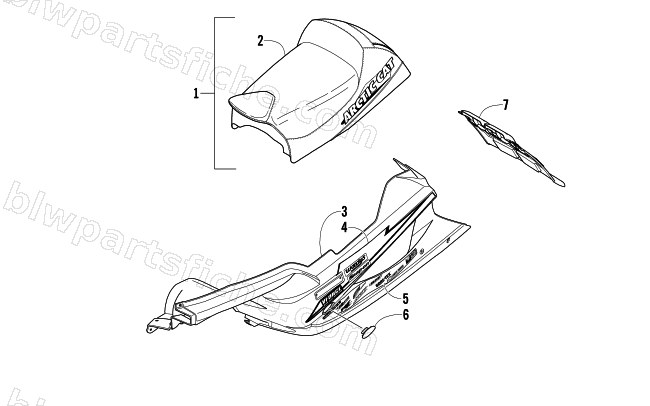

2004 Arctic Cat FIRECAT 700 LIMITED EDITION — BELLY PAN, SEAT, AND SNOWFLAP TEAM ARCTIC RED
2004 FIRECAT 700 LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 7997-594 | SEAT,RED-MFG ASSY | 1 | $695.95 | |
| 2 | 2706-472 | COVER,SEAT-RED W/GRAPHIC | 1 | $459.95 | |
| 3 | 2606-778 | BELLYPAN,RH-INJ MOLD-RED | 1 | $206.95 | |
| 3 | 2606-779 | BELLYPAN, LH-INJ MOLD-RED | 1 | $187.95 | |
| 4 | 5611-680 | DECAL,BELLY PAN-UPR RH RED | 1 | $66.95 | |
| 4 | 5611-681 | DECAL,BELLY PAN-UPR LH RED | 1 | $64.95 | |
| 5 | 5611-682 | DECAL,BELLY PAN-LWR RH RED | 1 | $67.95 | |
| 5 | 5611-683 | DECAL,BELLY PAN-LWR LH RED | 1 | $67.95 | |
| 6 | 2606-775 | PANEL, CLUTCH ACCESS-RED | 1 | $17.95 | |
| 7 | 3606-332 | SNOWFLAP,BLK-W/5611-202 DECAL | 1 | $128.95 |
