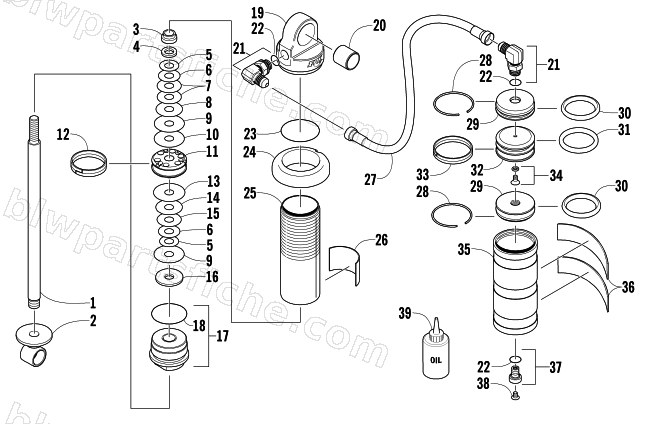

2004 Arctic Cat FIRECAT 700 EFI SNO PRO 1.375 — REAR SUSPENSION FRONT ARM SHOCK ABSORBER
2004 FIRECAT 700 EFI SNO PRO 1.375
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1704-140 | SHOCK,FRT ARM-ZERO PRO | 1 | $1,175.95 | |
| 1 | 2604-409 | SHAFT,CHROME-.498X6.450 | 1 | $66.95 | |
| 2 | 0604-625 | EYELET, SHOCK-ASSY | 1 | $95.95 | |
| 3 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 4 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 5 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 6 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 7 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 8 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 9 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 10 | 0603-883 | VALVE, SHOCK 1.250 X.012(3/8ID) | 1 | $6.95 | |
| 11 | 2604-412 | PISTON,.055 DIA HOLE | 1 | $58.95 | |
| 12 | 0603-292 | STRAP,PISTON-(STEP)-TURCITE | 1 | $36.95 | |
| 13 | 0603-891 | VALVE, SHOCK 1.300 X.012 | 1 | $12.95 | |
| 14 | 0603-882 | VALVE, SHOCK 1.100 X.012(3/8ID) | 1 | $12.95 | |
| 15 | 0603-881 | VALVE, SHOCK 1.000 X.012(3/8ID) | 1 | $6.95 | |
| 16 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 17 | 2604-413 | BEARING,ENDCAP.498" X 1.21"-ASSY | 1 | $151.95 | |
| 18 | 1604-420 | O-RING | 1 | $4.95 | |
| 19 | 2603-310 | BODY,CAP-ALUM BODY(NO GROOVES) | 1 | $129.95 | |
| 20 | 1604-791 | BUSHING,SHOCK-.890ID X .800 | 1 | $15.11 | |
| 21 | 2604-943 | FITTING,ELBOW-90 DEG | 1 | $36.95 | |
| 22 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 23 | 0603-438 | O-RING -END CAP | 1 | $4.95 | |
| 24 | 2603-221 | ADJUSTER,SPRING-ALUM BODY | 1 | $37.95 | |
| 25 | 2604-625 | BODY,SHOCK-ALUM 5.545 | 1 | $204.95 | |
| 26 | 2603-311 | DECAL,SHOCK BODY-ZERO PRO-5.100x1.375 | 1 | $6.95 | |
| 27 | 2604-416 | HOSE,FEMALE SWIVEL 1/2-20-25.5 | 1 | $184.95 | |
| 28 | 0604-992 | RETAINER, .062X1.850 ID ENDCAP | 1 | $6.06 | |
| 29 | 1603-936 | END CAP,RESERVOIR-CLEAR ANOD | 1 | $52.95 | |
| 30 | 0603-671 | O-RING, RES ENDCAP | 1 | $4.95 | |
| 31 | 1603-236 | O-RING, .210 C.S. X 1.350 ID | 1 | $11.95 | |
| 32 | 2604-517 | PISTON, INTERNAL FLOATING | 1 | $29.95 | |
| 33 | 1603-235 | STRAP, PISTON - RES | 1 | $21.95 | |
| 34 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 35 | 1603-935 | RESERVOIR,3 GROOVES-BLK ANOD | 1 | $152.95 | |
| 36 | 2604-658 | DECAL,RES BODY-ZERO PRO-6.25 X1.00 | 1 | $70.95 | |
| 37 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 38 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 39 | 4639-366 | S/M SHOCK OIL-1 QUART | 1 | $21.95 |
