2004 Arctic Cat FIRECAT 700 EFI SNO PRO 1.375 — PISTON AND CRANKSHAFT

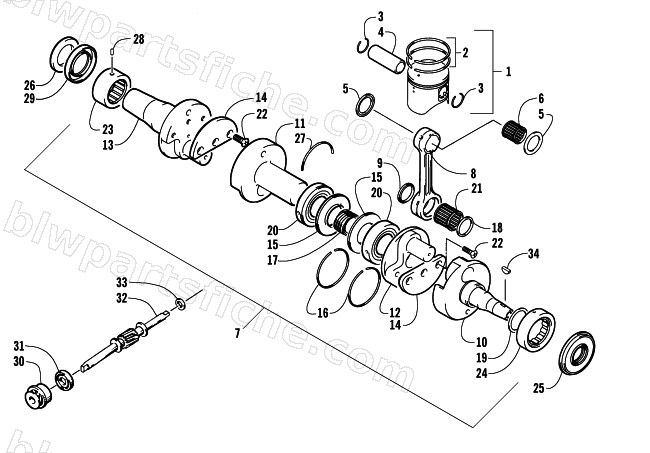

2004 FIRECAT 700 EFI SNO PRO 1.375
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-499 | PISTON SET(700 LAYDOWN) | 1 | $267.95 | |
| 2 | 3006-500 | RING SET,PISTON (700) | 1 | $97.95 | |
| 3 | 3005-304 | CIRCLIP,M22 | 1 | $3.30 | |
| 4 | 3006-501 | PIN,PISTON | 1 | $33.95 | |
| 5 | 3008-500 | WASHER,22MM | 1 | $5.92 | |
| 6 | 3008-503 | R/B 0932-011 | 1 | $39.95 | |
| 7 | 3007-561 | CRANKSHAFT ASSY | 1 | $2,796.95 | |
| 8 | 3007-530 | CONNROD | 1 | $251.95 | |
| 9 | 3004-147 | WASHER, M30X42X3 | 1 | $17.87 | |
| 10 | 3006-503 | CRANKSHAFT,R | 1 | $548.95 | |
| 11 | 3006-504 | CRANKSHAFT,M | 1 | $611.95 | |
| 12 | 3007-438 | WHEEL,CRANKSHAFT | 1 | $479.95 | |
| 13 | 3006-506 | CRANKSHAFT,L | 1 | $557.95 | |
| 14 | 3006-719 | BALANCER,CRANKSHAFT | 1 | $54.95 | |
| 15 | 3006-508 | RACE,MIDDLE CRANK SEAL | 1 | $78.95 | |
| 16 | 3005-508 | RING,MIDDLE CRANK SEAL | 1 | $34.95 | |
| 17 | 3006-519 | GEAR,OIL PUMP DRIVE | 1 | $208.95 | |
| 18 | 3006-489 | SHIM,30X38X1 | 1 | $10.97 | |
| 19 | 3008-495 | WASHER,40MM | 1 | $4.68 | |
| 20 | 3008-421 | BEARING,BALL,M35 | 1 | $125.95 | |
| 21 | 3007-532 | BEARING,CRANK PIN | 1 | $180.95 | |
| 22 | 3007-440 | SCREW | 1 | $2.06 | |
| 23 | 3007-439 | BEARING-LH | 1 | $303.95 | |
| 24 | 3006-551 | BEARING,RH | 1 | $277.95 | |
| 25 | 3003-367 | SEAL,CRANKSHAFT-RH,M35 | 1 | $69.95 | |
| 26 | 3006-552 | SPACER,OIL SEAL | 1 | $13.73 | |
| 27 | 3003-359 | C-RING,CRANKSHAFT,M75 | 1 | $20.63 | |
| 28 | 3003-658 | PIN,ALIGNMENT | 1 | $3.16 | |
| 29 | 3003-759 | R/B 0930-051 | 1 | $54.95 | |
| 30 | 3005-909 | SEAL, MECHANICAL WATER PUMP | 1 | $66.95 | |
| 31 | 3007-431 | OIL SEAL-10X22X6 | 1 | $16.49 | |
| 32 | 3006-520 | GEAR,OIL PUMP DRIVEN | 1 | $187.95 | |
| 33 | 3423-300 | WASHER,M10X18X1 | 1 | $2.75 | |
| 34 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 |
