2004 Arctic Cat FIRECAT 700 EFI SNO PRO 1.375 — OIL TANK ASSEMBLY
2004 FIRECAT 700 EFI SNO PRO 1.375
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

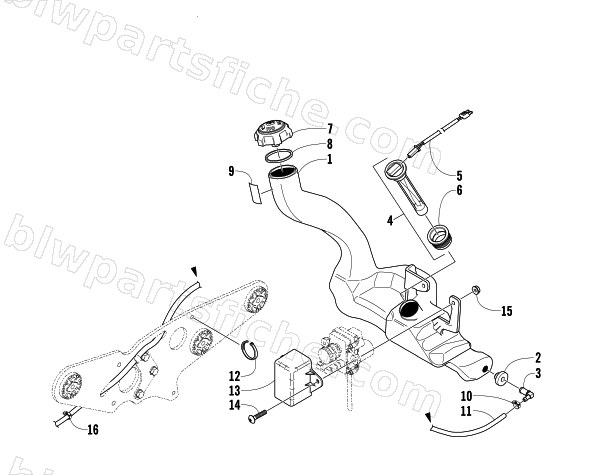

| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-673 | TANK,OIL | 1 | $110.95 | |
| 2 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 3 | 1670-324 | ELBOW, 90 DEG-1/4 BARB | 1 | $3.44 | |
| 4 | 0609-696 | SENSOR,OIL-4.75" BODY | 1 | $102.95 | |
| 5 | 0609-639 | SWITCH,OIL-W/HARNESS-SUB ASSY | 1 | $82.95 | |
| 6 | 0609-237 | SEAL,GROMMET-OIL SENSOR (REF 0609-224) | 1 | $3.44 | |
| 7 | 1670-365 | CAP, VENTED- OIL IMPRINTED | 1 | $33.95 | |
| 8 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 9 | 4611-532 | DECAL,OIL TANK-VEV SYNTHETIC | 1 | $2.75 | |
| 10 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 11 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 11 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 12 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 14 | 8017-584 | SCREW,MACH-TSTRH 1/4-20 X 1 1/4 GR2 Z&Y | 1 | $1.23 | |
| 15 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 16 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 |
