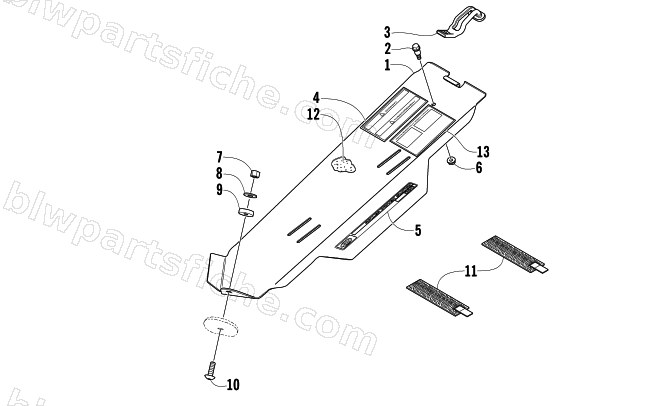

2004 Arctic Cat FIRECAT 700 EFI SNO PRO 1.375 — BELT GUARD ASSEMBLY
2004 FIRECAT 700 EFI SNO PRO 1.375
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0607-757 | GUARD,CLUTCH | 1 | $132.95 | |
| 2 | 0623-855 | SCREW, HEX,DOME HEAD SHOULDER-1/4-20X.50 | 1 | $13.73 | |
| 4 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 5 | 3611-969 | DECAL, "ACT-ROLLER DRIVEN CLUTCH" | 1 | $89.95 | |
| 6 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 7 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 8 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 9 | 1623-046 | WASHER,RUBBER-1.00X.281X.25 | 1 | $1.78 | |
| 10 | 8017-672 | SCREW,MACH-TSTRH 5/16-18 X 1.00 GR2 Z&Y | 1 | $4.68 | |
| 11 | 0707-582 | RETAINER, DRIVE BELT-VELCRO | 1 | $17.87 | |
| 12 | 0617-450 | FOAM,CLUTCH GUARD | 1 | $26.95 | |
| 13 | 5611-862 | DECAL, SPRING ADJUSTMENT | 1 | $12.35 |
