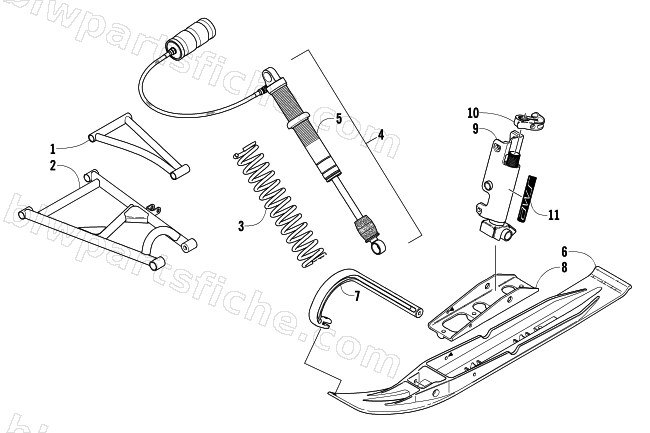

2004 Arctic Cat FIRECAT 700 EFI SNO PRO 1.375 LIMITED EDITION — SKI AND FRONT SUSPENSION
2004 FIRECAT 700 EFI SNO PRO 1.375 LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1703-426 | A-ARM,UPR BLK-FABR | 1 | $208.95 | |
| 2 | 1703-428 | A-ARM,LWR RH BLK-FABR | 1 | $224.95 | |
| 2 | 1703-429 | A-ARM,LWR LH BLK-FABR | 1 | $231.95 | |
| 3 | 1703-558 | SPRING,COMPRESSION-110#-PTD BLK | 1 | $110.95 | |
| 4 | 1703-498 | SHOCK,SKI-ZERO PRO RH(BLK ANOD) | 1 | $960.95 | |
| 4 | 1703-499 | SHOCK,SKI-ZERO PRO LH(BLK ANOD) | 1 | $960.95 | |
| 5 | 2603-286 | BODY,SHOCK-BLK ANOD-10.03 TLG | 1 | $100.95 | |
| 6 | 1703-109 | SKI,BLK PLASTIC-MACH | 1 | $287.95 | |
| 7 | 0603-624 | HANDLE,PLASTIC-BLACK | 1 | $32.95 | |
| 8 | 1703-632 | SADDLE, SKI- ASSY- PTD BLK | 1 | $74.95 | |
| 9 | 1703-432 | SPINDLE,RH-FABR BLK | 1 | $308.95 | |
| 9 | 1703-433 | SPINDLE,LH-FABR BLK | 1 | $334.95 | |
| 10 | 1703-659 | ARM,STEERING-SPINDLE-PNT BLK | 1 | $66.95 | |
| 11 | 5611-643 | DECAL,SPINDLE-"AWS" | 1 | $39.95 |
