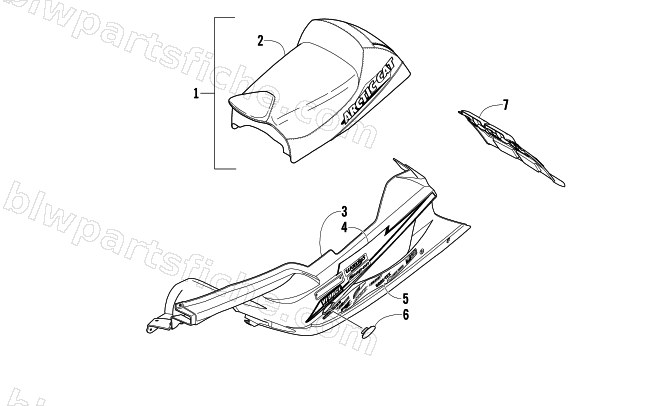

2004 Arctic Cat FIRECAT 700 EFI SNO PRO 1 LIMITED EDITION — BELLY PAN, SEAT, AND SNOWFLAP TEAM ARCTIC GREEN
2004 FIRECAT 700 EFI SNO PRO 1 LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 2706-470 | COVER,SEAT-GRN W/GRAPHIC | 1 | $365.95 | |
| 3 | 2706-222 | BELLY PAN,SNO PRO GRN-RH ROUTED | 1 | $184.95 | |
| 3 | 2706-223 | BELLY PAN,SNO PRO GRN-LH ROUTED | 1 | $178.95 | |
| 4 | 5611-660 | DECAL,BELLY PAN-UPR RH GRN | 1 | $52.95 | |
| 4 | 5611-661 | DECAL,BELLY PAN-UPR LH GRN | 1 | $64.95 | |
| 5 | 5611-662 | DECAL,BELLY PAN-LWR RH GRN | 1 | $69.95 | |
| 5 | 5611-663 | DECAL,BELLY PAN-LWR LH GRN | 1 | $64.95 | |
| 7 | 3606-332 | SNOWFLAP,BLK-W/5611-202 DECAL | 1 | $128.95 |
