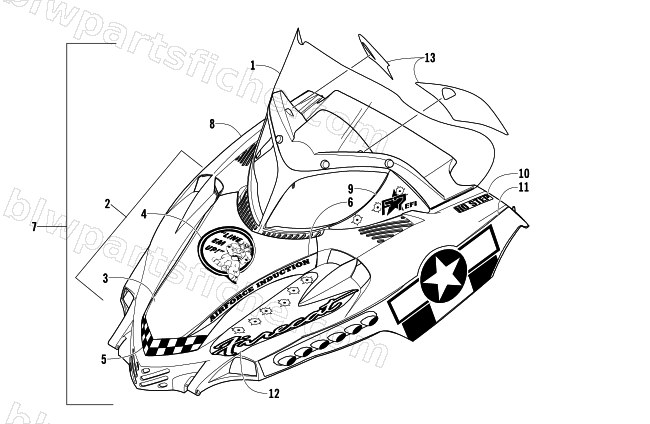

2004 Arctic Cat FIRECAT 700 EFI LIMITED EDITION — HOOD AND WINDSHIELD ASSEMBLY
2004 FIRECAT 700 EFI LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2606-834 | WINDSHIELD,LOW-CHROME | 1 | $298.95 | |
| 1 | 3606-250 | WINDSHIELD,LOW ALL BLK | 1 | $204.95 | |
| 1 | 3606-274 | WINDSHIELD,LOW-TIGER BLK | 1 | $199.95 | |
| 1 | 3606-273 | WINDSHIELD,LOW-TIGER GRN | 1 | $199.95 | |
| 1 | 3606-275 | WINDSHIELD,LOW-TIGER RED | 1 | $208.95 | |
| 2 | 1718-516 | COVER, HOOD-FP BLK-W/DECALS | 1 | $317.95 | |
| 2 | 1718-517 | COVER, HOOD-FP RED W/DECALS | 1 | $317.95 | |
| 2 | 1718-515 | COVER, HOOD-FP SLV-W/DECALS | 1 | $269.95 | |
| 2 | 1718-480 | COVER,HOOD-NIGHT FIRE-F7 BLK W/DECALS | 1 | $206.95 | |
| 2 | 1718-524 | COVER, HOOD-TIGER EFI BLK-W/DECALS | 1 | $333.95 | |
| 2 | 1718-478 | COVER, HOOD-TIGER EFI GRN-W/DECALS | 1 | $339.95 | |
| 2 | 1718-528 | COVER, HOOD-TIGER CARB RED-W/DECALS | 1 | $276.95 | |
| 2 | 1718-525 | COVER, HOOD-TIGER EFI RED-W/DECALS | 1 | $333.95 | |
| 3 | 2706-041 | COVER,HOOD-SNOW SEP-PTD PATRIOT BLUE | 1 | $165.95 | |
| 3 | 2706-031 | COVER,HOOD-SNOW SEPERATOR-PTD BLK | 1 | $574.95 | |
| 3 | 5611-625 | DECAL,CREST COVER-"F7" | 1 | $33.95 | |
| 3 | 2706-030 | COVER,HOOD-SNOW SEPERATOR-PTD GRN | 1 | $165.95 | |
| 3 | 2706-042 | COVER,HOOD-SNOW SEP-PTD RED | 1 | $175.95 | |
| 4 | 5611-735 | DECAL,COVER-CREST BLK | 1 | $30.95 | |
| 4 | 5611-757 | DECAL,COVER-CREST RED | 1 | $85.95 | |
| 4 | 5611-711 | DECAL,COVER-CREST SLV | 1 | $34.95 | |
| 4 | 5611-638 | DECAL,COVER-"AIR FORCE INDUCTION" | 1 | $11.95 | |
| 4 | 5611-806 | DECAL,COVER-BLK UPR | 1 | $74.95 | |
| 4 | 5611-786 | DECAL,COVER-GRN UPR | 1 | $72.95 | |
| 4 | 5611-828 | DECAL,COVER-RED UPR | 1 | $74.95 | |
| 5 | 5611-693 | DECAL,COVER-FRT | 1 | $166.95 | |
| 5 | 1718-477 | HOOD, NIGHT FIRE-W/DECALS (F7 EFI) | 1 | $1,211.95 | |
| 5 | 5611-808 | DECAL,COVER-BLK LWR RH | 1 | $32.95 | |
| 5 | 5611-809 | DECAL,COVER-BLK LWR LH | 1 | $32.95 | |
| 5 | 5611-788 | DECAL,COVER-GRN LWR RH | 1 | $40.95 | |
| 5 | 5611-789 | DECAL,COVER-GRN LWR LH | 1 | $40.95 | |
| 5 | 5611-830 | DECAL,COVER-RED LWR RH | 1 | $33.95 | |
| 5 | 5611-831 | DECAL,COVER-RED LWR LH | 1 | $29.95 | |
| 6 | 5611-736 | DECAL,COVER-RH "AIR FORCE INDUCTION" | 1 | $33.95 | |
| 6 | 5611-737 | DECAL,COVER-LH "AIR FORCE INDUCTION" | 1 | $33.95 | |
| 6 | 5611-758 | DECAL,COVER-RH "AIR FORCE INDUCTION" | 1 | $33.95 | |
| 6 | 5611-759 | DECAL,COVER-LH "AIR FORCE INDUCTION" | 1 | $20.63 | |
| 6 | 5611-712 | DECAL,COVER-RH "AIR FORCE INDUCTION" | 1 | $85.95 | |
| 6 | 5611-713 | DECAL,COVER-LH "AIR FORCE INDUCTION" | 1 | $85.95 | |
| 6 | 5611-634 | DECAL,HOOD LIGHT-"EFI" RH | 1 | $16.95 | |
| 6 | 5611-635 | DECAL,HOOD LIGHT-"EFI" LH | 1 | $16.95 | |
| 6 | 5611-807 | DECAL,COVER-BLK NOSE | 1 | $26.95 | |
| 6 | 5611-787 | DECAL,COVER-GRN NOSE | 1 | $33.95 | |
| 6 | 5611-829 | DECAL,COVER-RED NOSE | 1 | $26.95 | |
| 7 | 1718-509 | HOOD, BLK FP-W/DECAL (F7 EFI) | 1 | $1,264.95 | |
| 7 | 1718-514 | HOOD, RED FP-W/DECALS (F7 EFI) | 1 | $1,312.95 | |
| 7 | 1718-504 | HOOD,FIRECAT W/DECAL-PLATINUM | 1 | $1,201.95 | |
| 7 | 5611-630 | DECAL,HOOD-LWR RH "F7" | 1 | $87.95 | |
| 7 | 5611-798 | DECAL,COVER-UPR RH BLK "EFI" | 1 | $22.95 | |
| 7 | 5611-799 | DECAL,COVER-UPR LH BLK "EFI" | 1 | $22.95 | |
| 7 | 5611-644 | DECAL,COVER-UPR RH GRN "EFI" | 1 | $18.95 | |
| 7 | 5611-645 | DECAL,COVER-UPR LH GRN "EFI" | 1 | $20.95 | |
| 7 | 5611-820 | DECAL,COVER-UPR RH RED "EFI" | 1 | $20.95 | |
| 7 | 5611-821 | DECAL,COVER-UPR LH RED "EFI" | 1 | $20.95 | |
| 8 | 1718-237 | HOOD,W/O DECALS(F2 BLK) | 1 | $1,090.95 | |
| 8 | 1718-270 | HOOD-W/O DECALS(RED) | 1 | $1,090.95 | |
| 8 | 1718-522 | HOOD,W/O DECALS-PLATINUM | 1 | $967.95 | |
| 8 | 5611-632 | DECAL,HOOD-CONSOLE RH | 1 | $11.95 | |
| 8 | 5611-633 | DECAL,HOOD-CONSOLE-LH | 1 | $11.95 | |
| 8 | 1718-492 | HOOD, BLK TG-W/DECALS (F7 CARB/EFI) | 1 | $1,333.95 | |
| 8 | 1718-482 | HOOD, GRN TG-W/DECALS (F7 CARB/EFI) | 1 | $1,374.95 | |
| 8 | 1718-505 | HOOD, RED TG-W/DECALS (F7 CARB/EFI) | 1 | $1,374.95 | |
| 9 | 5611-732 | DECAL,HOOD LIGHT-BLK EFI RH "F7" | 1 | $29.95 | |
| 9 | 5611-733 | DECAL,HOOD LIGHT-BLK EFI LH "F7" | 1 | $65.95 | |
| 9 | 5611-754 | DECAL,HOOD LIGHT-RED EFI RH "F7" | 1 | $70.95 | |
| 9 | 5611-755 | DECAL,HOOD LIGHT-RED EFI LH "F7" | 1 | $70.95 | |
| 9 | 5611-708 | DECAL,HOOD LIGHT-SLV EFI RH "F7" | 1 | $19.95 | |
| 9 | 5611-709 | DECAL,HOOD LIGHT-SLV EFI LH "F7" | 1 | $21.95 | |
| 9 | 5611-794 | DECAL,HOOD LIGHT-BLK RH "F7" | 1 | $24.95 | |
| 9 | 5611-795 | DECAL,HOOD LIGHT-BLK LH "F7" | 1 | $29.95 | |
| 9 | 5611-724 | DECAL,HOOD LIGHT-GRN RH "F7" | 1 | $31.95 | |
| 9 | 5611-725 | DECAL,HOOD LIGHT-GRN LH "F7" | 1 | $31.95 | |
| 9 | 5611-816 | DECAL,HOOD LIGHT-RED RH "F7" | 1 | $24.95 | |
| 9 | 5611-817 | DECAL,HOOD LIGHT-RED LH "F7" | 1 | $24.95 | |
| 10 | 5611-734 | DECAL,HOOD-UPR BLK "NO STEP" | 1 | $27.95 | |
| 10 | 5611-756 | DECAL,HOOD-UPR RED "NO STEP" | 1 | $26.95 | |
| 10 | 5611-710 | DECAL,HOOD-UPR SLV "NO STEP" | 1 | $30.95 | |
| 10 | 5611-800 | DECAL,HOOD-BLK "ARCTIC CAT" | 1 | $21.95 | |
| 10 | 5611-780 | DECAL,HOOD-GRN "ARCTIC CAT" | 1 | $21.95 | |
| 10 | 5611-822 | DECAL,HOOD-RED "ARCTIC CAT" | 1 | $22.95 | |
| 11 | 5611-718 | DECAL,HOOD-LWR BLK RH | 1 | $136.95 | |
| 11 | 5611-719 | DECAL,HOOD-LWR BLK LH | 1 | $150.95 | |
| 11 | 5611-740 | DECAL,HOOD-LWR RED RH | 1 | $141.95 | |
| 11 | 5611-741 | DECAL,HOOD-LWR RED LH | 1 | $150.95 | |
| 11 | 5611-694 | DECAL,HOOD-LWR SLV RH | 1 | $193.95 | |
| 11 | 5611-695 | DECAL,HOOD-LWR SLV LH | 1 | $215.95 | |
| 11 | 5611-804 | DECAL,HOOD-BLK LWR RH | 1 | $89.95 | |
| 11 | 5611-805 | DECAL,HOOD-BLK LWR LH | 1 | $89.95 | |
| 11 | 5611-784 | DECAL,HOOD-GRN LWR RH | 1 | $82.95 | |
| 11 | 5611-785 | DECAL,HOOD-GRN LWR LH | 1 | $90.95 | |
| 11 | 5611-826 | DECAL,HOOD-RED LWR RH | 1 | $89.95 | |
| 11 | 5611-827 | DECAL,HOOD-RED LWR LH | 1 | $97.95 | |
| 12 | 5611-720 | DECAL,HOOD-FWD BLK RH | 1 | $56.95 | |
| 12 | 5611-721 | DECAL,HOOD-FWD BLK LH | 1 | $56.95 | |
| 12 | 5611-742 | DECAL,HOOD-FWD RED RH | 1 | $56.95 | |
| 12 | 5611-743 | DECAL,HOOD-FWD RED LH | 1 | $56.95 | |
| 12 | 5611-696 | DECAL,HOOD-FWD SLV RH | 1 | $47.95 | |
| 12 | 5611-697 | DECAL,HOOD-FWD SLV LH | 1 | $167.95 | |
| 12 | 5611-801 | DECAL,HOOD-BLK CENTER | 1 | $33.95 | |
| 12 | 5611-781 | DECAL,HOOD-GRN CENTER | 1 | $32.95 | |
| 12 | 5611-823 | DECAL,HOOD-RED CENTER | 1 | $33.95 | |
| 13 | 5611-722 | DECAL,CONSOLE-BLK RH | 1 | $33.95 | |
| 13 | 5611-723 | DECAL,CONSOLE-BLK LH | 1 | $129.95 | |
| 13 | 5611-744 | DECAL,CONSOLE-RED RH | 1 | $73.95 | |
| 13 | 5611-745 | DECAL,CONSOLE-RED LH | 1 | $70.95 | |
| 13 | 5611-698 | DECAL,HOOD-CONSOLE SLV RH | 1 | $13.95 | |
| 13 | 5611-699 | DECAL,HOOD-CONSOLE SLV LH | 1 | $136.95 | |
| 13 | 5611-796 | DECAL,HOOD-CONSOLE BLK RH | 1 | $85.95 | |
| 13 | 5611-797 | DECAL,HOOD-CONSOLE BLK LH | 1 | $85.95 | |
| 13 | 5611-746 | DECAL,HOOD-CONSOLE GRN RH | 1 | $16.49 | |
| 13 | 5611-747 | DECAL,HOOD-CONSOLE GRN LH | 1 | $16.49 | |
| 13 | 5611-818 | DECAL,HOOD-CONSOLE RED RH | 1 | $11.95 | |
| 13 | 5611-819 | DECAL,HOOD-CONSOLE RED LH | 1 | $11.95 | |
| 14 | 5611-802 | DECAL,HOOD-BLK FRT UPR RH | 1 | $52.95 | |
| 14 | 5611-803 | DECAL,HOOD-BLK FRT UPR LH | 1 | $52.95 | |
| 14 | 5611-782 | DECAL,HOOD-GRN FRT UPR RH | 1 | $52.95 | |
| 14 | 5611-783 | DECAL,HOOD-GRN FRT UPR LH | 1 | $52.95 | |
| 14 | 5611-824 | DECAL,HOOD-RED FRT UPR RH | 1 | $52.95 | |
| 14 | 5611-825 | DECAL,HOOD-RED FRT UPR LH | 1 | $52.95 |
