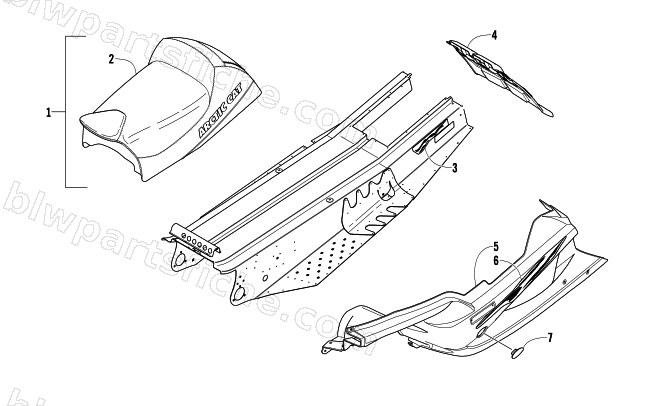

2004 Arctic Cat FIRECAT 600 LIMITED EDITION — BELLY PAN, SEAT, TUNNEL, AND SNOWFLAP TIGER GREEN
2004 FIRECAT 600 LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 2706-487 | COVER,SEAT-GRN W/GRAPHIC | 1 | $481.95 | |
| 3 | 5611-626 | DECAL,TUNNEL-GRN RH | 1 | $63.95 | |
| 3 | 5611-627 | DECAL,TUNNEL-GRN LH | 1 | $63.95 | |
| 5 | 2606-348 | BELLYPAN,RH-INJ MOLD-GREEN | 1 | $201.95 | |
| 5 | 2606-349 | BELLYPAN,LH-INJ MOLD-GREEN | 1 | $201.95 | |
| 5 | 2706-222 | BELLY PAN,SNO PRO GRN-RH ROUTED | 1 | $184.95 | |
| 5 | 2706-223 | BELLY PAN,SNO PRO GRN-LH ROUTED | 1 | $178.95 | |
| 6 | 5611-790 | DECAL,BELLY PAN-GRN RH | 1 | $64.95 | |
| 6 | 5611-791 | DECAL,BELLY PAN-GRN LH | 1 | $67.95 |
