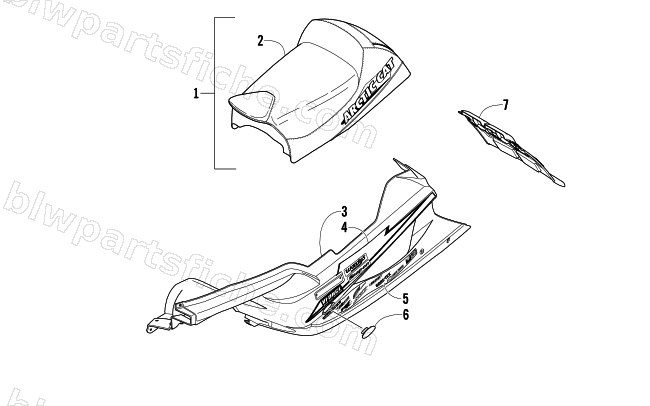

2004 Arctic Cat FIRECAT 600 LIMITED EDITION — BELLY PAN, SEAT, AND SNOWFLAP TEAM ARCTIC BLACK
2004 FIRECAT 600 LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 7997-593 | SEAT,BLK-MFG ASSY | 1 | $728.95 | |
| 2 | 2706-471 | COVER,SEAT-BLK W/GRAPHIC | 1 | $448.95 | |
| 3 | 2606-646 | BELLY PAN,RH-INJ MOLD-BLACK | 1 | $313.95 | |
| 3 | 2606-647 | BELLY PAN,LH-INJ MOLD-BLACK | 1 | $197.95 | |
| 4 | 5611-670 | DECAL,BELLY PAN-UPR RH BLK | 1 | $67.95 | |
| 4 | 5611-671 | DECAL,BELLY PAN-UPR LH BLK | 1 | $67.95 | |
| 5 | 5611-672 | DECAL,BELLY PAN-LWR RH BLK | 1 | $82.95 | |
| 5 | 5611-673 | DECAL,BELLY PAN-LWR LH BLK | 1 | $82.95 | |
| 6 | 2606-650 | PANEL,CLUTCH ACCESS-BLACK | 1 | $32.95 | |
| 7 | 3606-332 | SNOWFLAP,BLK-W/5611-202 DECAL | 1 | $128.95 |
