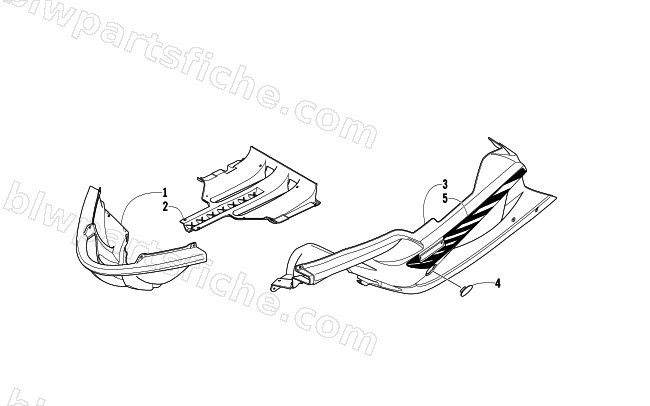

2004 Arctic Cat FIRECAT 600 LIMITED EDITION — BELLY PAN NIGHTFIRE BLACK
2004 FIRECAT 600 LIMITED EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4606-040 | BELLY PAN,FRT BUMPER-BLK | 1 | $232.95 | |
| 2 | 3606-085 | BELLY PAN,CENTER-BLK | 1 | $244.95 | |
| 3 | 2706-224 | BELLY PAN,SNO PRO BLK-RH ROUTED | 1 | $187.95 | |
| 3 | 2706-225 | BELLY PAN,SNO PRO BLK-LH ROUTED | 1 | $209.95 | |
| 3 | 2606-646 | BELLY PAN,RH-INJ MOLD-BLACK | 1 | $313.95 | |
| 3 | 2606-647 | BELLY PAN,LH-INJ MOLD-BLACK | 1 | $197.95 | |
| 4 | 2606-650 | PANEL,CLUTCH ACCESS-BLACK | 1 | $32.95 | |
| 5 | 5611-640 | DECAL,BELLY PAN-RH | 1 | $64.95 | |
| 5 | 5611-641 | DECAL,BELLY PAN-LH | 1 | $66.95 |
