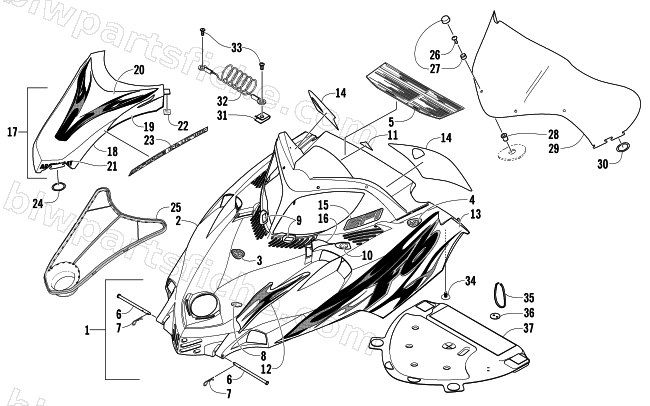

2004 Arctic Cat FIRECAT 600 EFI SNO PRO 1.375 — HOOD AND WINDSHIELD ASSEMBLY
2004 FIRECAT 600 EFI SNO PRO 1.375
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-422 | HOOD W/DECALS-RED (F6 EFI) | 1 | $1,374.95 | |
| 1 | 1718-417 | HOOD W/DECALS-BLK (F6 EFI) | 1 | $1,374.95 | |
| 1 | 1718-412 | HOOD,GRN-W/DECALS(F6 EFI) | 1 | $1,201.95 | |
| 2 | 1718-270 | HOOD-W/O DECALS(RED) | 1 | $1,090.95 | |
| 2 | 1718-237 | HOOD,W/O DECALS(F2 BLK) | 1 | $1,090.95 | |
| 2 | 1718-218 | HOOD,W/O DECALS(FIRECAT GRN) | 1 | $1,090.95 | |
| 3 | 0717-169 | FOAM, HOOD-CENTER FRT | 1 | $8.95 | |
| 4 | 0717-170 | FOAM, HOOD-REAR RH | 1 | $8.95 | |
| 4 | 0717-171 | FOAM, HOOD-REAR LH | 1 | $8.95 | |
| 5 | 4611-496 | DECAL, CAUTION/WARNING | 1 | $39.95 | |
| 6 | 1623-026 | PIN,CLEVIS-1/4 | 1 | $33.95 | |
| 7 | 0623-847 | CLIP, HAIRPIN | 1 | $0.95 | |
| 8 | 3606-130 | FOIL,HOOD-UPR LEFT | 1 | $16.95 | |
| 12 | 5611-378 | DECAL,HOOD-FWD RED RH | 1 | $185.95 | |
| 12 | 5611-379 | DECAL,HOOD-FWD RED LH | 1 | $110.95 | |
| 12 | 5611-356 | DECAL,HOOD-FWD BLK RH | 1 | $141.95 | |
| 12 | 5611-357 | DECAL,HOOD-FWD BLK LH | 1 | $102.95 | |
| 12 | 5611-332 | DECAL,HOOD-FWD GRN RH | 1 | $88.95 | |
| 12 | 5611-333 | DECAL,HOOD-FWD GRN LH | 1 | $31.95 | |
| 13 | 5611-370 | DECAL,HOOD-LWR RED "F6" RH | 1 | $167.95 | |
| 13 | 5611-371 | DECAL,HOOD-LWR RED "F6" LH | 1 | $167.95 | |
| 13 | 5611-348 | DECAL,HOOD-LWR BLK "F6" RH | 1 | $104.95 | |
| 13 | 5611-349 | DECAL,HOOD-LWR BLK "F6" LH | 1 | $101.95 | |
| 13 | 5611-324 | DECAL,HOOD-LWR GRN "F6" RH | 1 | $167.95 | |
| 13 | 5611-325 | DECAL,HOOD-LWR GRN "F6" LH | 1 | $92.95 | |
| 14 | 5611-380 | DECAL,HOOD-CONSOLE RED RH | 1 | $20.63 | |
| 14 | 5611-381 | DECAL,HOOD-CONSOLE RED LH | 1 | $20.63 | |
| 14 | 5611-358 | DECAL,HOOD-CONSOLE BLK RH | 1 | $143.95 | |
| 14 | 5611-359 | DECAL,HOOD-CONSOLE BLK LH | 1 | $17.95 | |
| 14 | 5611-336 | DECAL,HOOD-CONSOLE GRN RH | 1 | $90.95 | |
| 14 | 5611-337 | DECAL,HOOD-CONSOLE GRN LH | 1 | $88.95 | |
| 15 | 5611-374 | DECAL,HOOD LIGHT-RED "EFI" RH | 1 | $213.95 | |
| 15 | 5611-375 | DECAL,HOOD LIGHT-RED "EFI" LH | 1 | $116.95 | |
| 15 | 5611-352 | DECAL, HOOD LIGHT-BLK "EFI" RH | 1 | $85.95 | |
| 15 | 5611-353 | DECAL,HOOD LIGHT-BLK "EFI" LH | 1 | $102.95 | |
| 15 | 5611-328 | DECAL,HOOD LIGHT-GRN "EFI" RH | 1 | $106.95 | |
| 15 | 5611-329 | DECAL,HOOD LIGHT-GRN "EFI" LH | 1 | $93.95 | |
| 16 | 5611-334 | DECAL,HOOD-VENT BLK RH | 1 | $39.95 | |
| 16 | 5611-335 | DECAL,HOOD-VENT BLK LH | 1 | $39.95 | |
| 17 | 1718-427 | COVER, HOOD-BLK W/RED DECALS | 1 | $280.95 | |
| 17 | 1718-426 | COVER,HOOD-BLK W/BLK DECALS | 1 | $568.95 | |
| 17 | 1718-425 | COVER,HOOD-BLK W/GRN DECALS | 1 | $679.95 | |
| 18 | 2706-031 | COVER,HOOD-SNOW SEPERATOR-PTD BLK | 1 | $574.95 | |
| 19 | 5611-366 | DECAL,COVER-LWR RED RH | 1 | $22.01 | |
| 19 | 5611-367 | DECAL,COVER-LWR RED LH | 1 | $22.01 | |
| 19 | 5611-344 | DECAL,COVER-LWR BLK RH | 1 | $21.95 | |
| 19 | 5611-345 | DECAL,COVER-LWR BLK LH | 1 | $21.95 | |
| 19 | 5611-320 | DECAL,COVER-LWR GRN RH | 1 | $136.95 | |
| 19 | 5611-321 | DECAL,COVER-LWR GRN LH | 1 | $93.95 | |
| 20 | 5611-364 | DECAL,COVER-CREST RED | 1 | $191.95 | |
| 20 | 5611-342 | DECAL,COVER-CREST BLK | 1 | $94.95 | |
| 20 | 5611-318 | DECAL,COVER-CREST GRN | 1 | $39.95 | |
| 21 | 5611-382 | DECAL,COVER-"ARCTIC CAT" W/FLAMES | 1 | $136.95 | |
| 22 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 23 | 5611-319 | DECAL,COVER-FWD YEL "AIRFORCE INDUCTION" | 1 | $89.95 | |
| 24 | 2606-801 | O-RING,HOOD | 1 | $5.92 | |
| 25 | 3606-150 | SCREEN,HOOD-AIR INTAKE | 1 | $79.95 | |
| 26 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 27 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 28 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 29 | 3606-062 | WINDSHIELD,LOW-BLK W/RED FADE | 1 | $216.95 | |
| 29 | 2606-834 | WINDSHIELD,LOW-CHROME | 1 | $298.95 | |
| 30 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 31 | 1623-052 | NUT,U | 1 | $0.95 | |
| 32 | 2606-726 | CABLE,HOOD-17.00 | 1 | $20.63 | |
| 33 | 0623-302 | SCREW,SELF TAP-HWH #12X1/2 TYPE | 1 | $0.26 | |
| 34 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 35 | 0623-144 | TIE,CABLE-17.5 LONG | 1 | $0.54 | |
| 36 | 1623-208 | WASHER,RETAINING | 1 | $1.95 |
