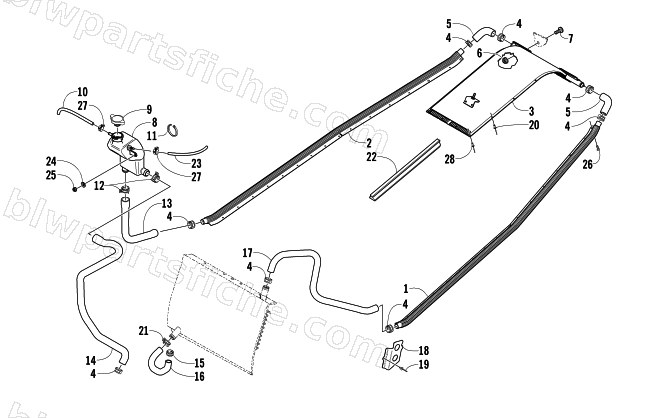

2004 Arctic Cat FIRECAT 600 EFI EARLY BUILD — COOLING ASSEMBLY
2004 FIRECAT 600 EFI EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1706-317 | RUNNING BOARD,HEAT EXCH-FORMED LH | 1 | $79.95 | |
| 2 | 1706-316 | RUNNING BOARD,HEAT EXCH-FORMED RH | 1 | $76.95 | |
| 3 | 2706-146 | HEAT EXCH,REAR-WELD'T | 1 | $329.95 | |
| 4 | 1623-049 | CLAMP,HOSE-24/8 SS | 1 | $3.57 | |
| 5 | 0610-467 | HOSE,COOLANT-REAR EXCH | 1 | $19.25 | |
| 6 | 8041-246 | NUT,HEX THIN LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 7 | 8017-397 | SCREW,MACH-TSTRH 10-24X.5 GR2 Z&Y | 1 | $0.35 | |
| 8 | 3606-349 | TANK,COOLANT-04 | 1 | $112.95 | |
| 9 | 0606-268 | CAP,MINI RADIATOR-13LBS | 1 | $24.77 | |
| 10 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 10 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 11 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 12 | 1623-092 | CLAMP,BAND-SAE #16 | 1 | $5.09 | |
| 13 | 0610-468 | HOSE,COOLANT-RH EXCH/TANK | 1 | $39.95 | |
| 14 | 0610-526 | HOSE,COOLANT-TANK/THERMOSTAT | 1 | $99.95 | |
| 15 | 1623-048 | CLAMP,HOSE-23/8 SS | 1 | $4.40 | |
| 16 | 0610-527 | HOSE, COOLANT - ENG/FRT EXCH | 1 | $26.95 | |
| 17 | 0610-466 | HOSE,COOLANT-FRT EXCH/LH EXCH | 1 | $57.95 | |
| 18 | 2606-597 | PROTECTOR, HOSE-FRT EXCH | 1 | $10.95 | |
| 19 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 20 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 21 | 0623-941 | CLAMP,HOSE(NORMA 24) COOLING | 1 | $5.95 | |
| 22 | 0619-833 | PROTECTOR,TUNNEL-CTL | 1 | $18.95 | |
| 23 | 0610-538 | HOSE,VENT- 25' (1054-152) | 1 | $117.95 | |
| 24 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 25 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 26 | 1623-061 | SCREW,PLASTITE-TSFH 1/4-10X.750 Z&Y | 1 | $0.95 | |
| 27 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 28 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 |
