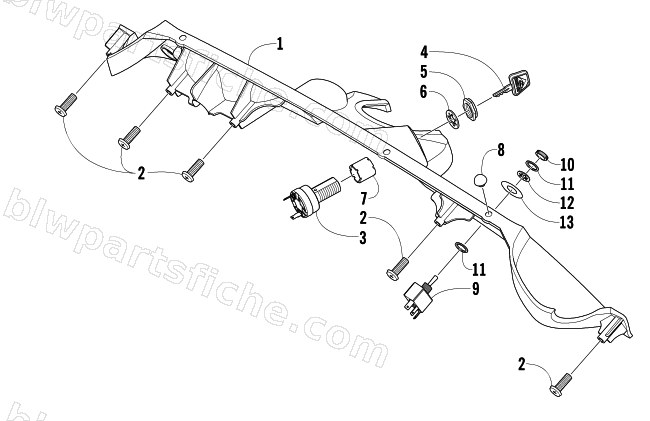

2004 Arctic Cat FIRECAT 600 EFI EARLY BUILD — CONSOLE AND SWITCH ASSEMBLY
2004 FIRECAT 600 EFI EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3606-195 | CONSOLE, EFI | 1 | $90.95 | |
| 2 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 3 | 0609-286 | SWITCH, IGNITION NORM OPEN | 1 | $66.95 | |
| 5 | 0609-113 | NUT,RETAINING 13/16-20 BLACK PLASTIC | 1 | $1.50 | |
| 6 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 8 | 1612-287 | BUMPER,MOLDED-RUBBER(CHASSIS) | 1 | $3.16 | |
| 9 | 0609-903 | SWITCH,TOGGLE-SPDT | 1 | $27.95 | |
| 10 | 0609-220 | NUT,KNURLED-BLACK (BRASS) | 1 | $1.95 | |
| 11 | 0623-153 | WASHER,NYLON 1/2X5/8-.030 | 1 | $2.95 | |
| 12 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 13 | 5611-144 | PLATE,CONSOLE-EFI ONLY | 1 | $23.95 |
