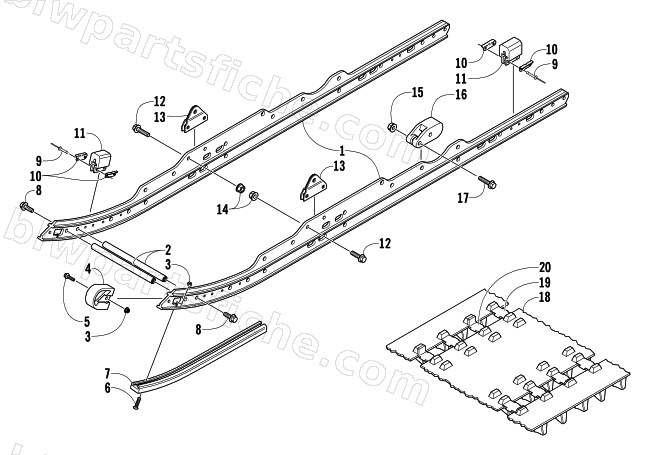

2004 Arctic Cat BEARCAT WIDE TRACK — SLIDE RAIL AND TRACK ASSEMBLY
2004 BEARCAT WIDE TRACK
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 7997-600 | REAR SUSP-MFG ASSY | 1 | $5,567.95 | |
| 1 | 1604-985 | RAIL, FORMED,STAMPED | 1 | $323.95 | |
| 2 | 0604-938 | SUPPORT,RAIL-REAR .625 X 13.250 | 1 | $36.95 | |
| 3 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 4 | 1604-137 | NOSEPIECE,RAIL-BLUNT | 1 | $6.75 | |
| 5 | 8020-042 | SCREW,CAP-HFH 1/4-20 X 1.00 Z&Y | 1 | $1.09 | |
| 6 | 0123-859 | SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z&Y | 1 | $1.09 | |
| 7 | 2604-799 | WEARSTRIP,162" SLIDE RAIL-BLK | 1 | $38.95 | |
| 8 | 8020-132 | SCREW,CAP-HFH 5/16-18 X1.00 G5 Z&Y | 1 | $1.95 | |
| 9 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 10 | 0604-967 | BRACKET,RETAINING-SHOCK PAD | 1 | $3.57 | |
| 11 | 0604-918 | PAD,SHOCK-RUBBER | 1 | $13.73 | |
| 12 | 8020-131 | SCREW,CAP-HFH 5/16-18 X0.875 G5 Z&Y | 1 | $1.50 | |
| 13 | 0704-395 | BRKT,MTG-FRONT ARM-PTD BLK | 1 | $20.63 | |
| 14 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 15 | 8048-486 | NUT,HEX FLG-TOP LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 16 | 1604-413 | BLOCK,SPRING TENSION | 1 | $22.01 | |
| 17 | 8020-227 | SCREW,CAP-HFH 3/8-16 X 2.00 Z&Y | 1 | $2.47 | |
| 18 | 0602-962 | TRACK,20X156X13.58X2.52X1.00 | 1 | $1,329.95 | |
| 19 | 2602-383 | CLIP,GUIDE | 1 | $4.26 | |
| 20 | 2602-384 | CLIP,WEAR | 1 | $3.57 |
