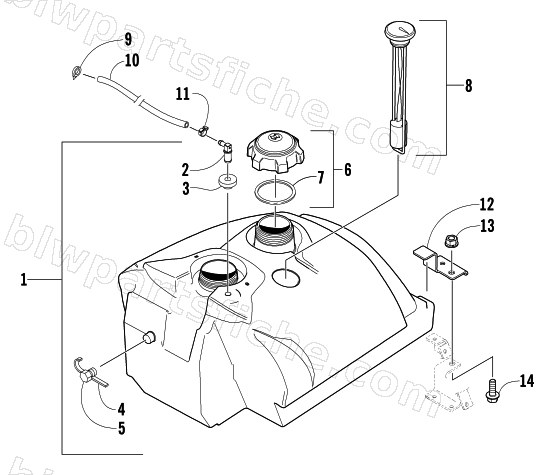

2004 Arctic Cat BEARCAT WIDE TRACK — GAS TANK ASSEMBLY
2004 BEARCAT WIDE TRACK
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-624 | TANK,GAS-S/P ASSY | 1 | $477.95 | |
| 2 | 1670-494 | ELBOW, 90 DEG-FUEL TANK | 1 | $3.99 | |
| 3 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 4 | 0670-289 | TAPE, TEFLON-ROLL | 1 | $6.34 | |
| 5 | 0670-243 | PLUG, GAS TANK-1/4 NPT | 1 | $1.92 | |
| 6 | 0470-541 | CAP, FUEL - 3.5" | 1 | $46.95 | |
| 7 | 1670-228 | SEAL,GAS CAP | 1 | $26.95 | |
| 8 | 1670-524 | GAUGE,FUEL W/ GASKET | 1 | $137.95 | |
| 9 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 10 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 10 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 11 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 12 | 2706-168 | BRKT,HOLDDOWN-FUEL TANK-RH-PTD BLK | 1 | $41.95 | |
| 12 | 2706-169 | BRKT,HOLDDOWN-FUEL TANK-LH-PTD BLK | 1 | $37.95 | |
| 13 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 14 | 8020-130 | SCREW,CAP-HFH 5/16-18 X0.75 G5 Z&Y | 1 | $0.95 |
