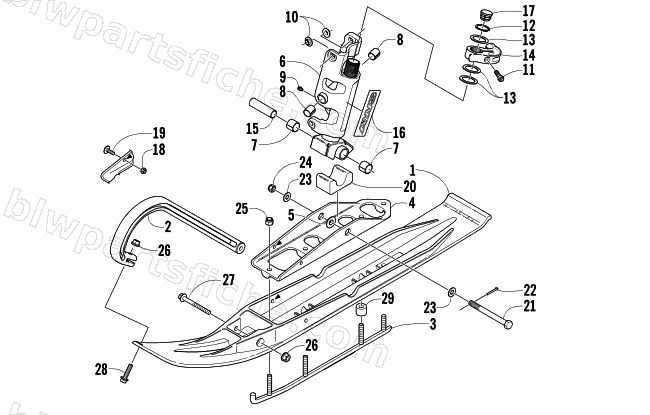

2004 Arctic Cat ARCTIC CAT 440 SNO PRO — SKI AND SPINDLE ASSEMBLY
2004 ARCTIC CAT 440 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-958 | SKI, PLASTIC,MACH BLK(W/SKAG GROOVE) | 1 | $234.95 | |
| 2 | 2603-377 | HANDLE,PLASTIC SKI-PEARL CAT GRN | 1 | $32.95 | |
| 3 | 0703-871 | SKAG, 4" CARBIDE-PTD BLK | 1 | $62.95 | |
| 4 | 1703-436 | SADDLE,BLK-W/INSERT-ASSY | 1 | $137.95 | |
| 5 | 0603-621 | INSERT-SKI SADDLE | 1 | $4.95 | |
| 6 | 1703-552 | SPINDLE,RH-FABR | 1 | $334.95 | |
| 6 | 1703-553 | SPINDLE,LH-FABR | 1 | $334.95 | |
| 7 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 8 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 9 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 10 | 0603-647 | INSERT,ALUM.-SPINDLE | 1 | $5.78 | |
| 11 | 8005-584 | SCREW, CAP-HSH 5/16-18X1.25 Z&Y | 1 | $0.65 | |
| 12 | 0623-796 | SNAP RING,EXTL-BOWED-1 1/8 DIA | 1 | $1.23 | |
| 13 | 1603-203 | WASHER,THRUST-SPINDLE WELD'T-.060 | 1 | $2.75 | |
| 14 | 1703-664 | ARM,STEERING-SPINDLE-PTD PEARL CAT GRN | 1 | $71.95 | |
| 15 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 16 | 5611-934 | DECAL,SPINDLE-RH | 1 | $39.95 | |
| 16 | 5611-935 | DECAL,SPINDLE-LH | 1 | $39.95 | |
| 17 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 | |
| 18 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 19 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 20 | 0603-036 | DAMPER, SKI RUBBER | 1 | $17.87 | |
| 21 | 0623-552 | SCREW,CAP-HH 7/16-20 X 4.50 W/HOLE | 1 | $12.35 | |
| 22 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 23 | 0623-728 | WSHR, FLAT-HARD(.469 X 1.125 X .100 THK) | 1 | $3.02 | |
| 24 | 0123-296 | NUT,FLEX-FULL 7/16-20 | 1 | $6.47 | |
| 25 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 26 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 27 | 8020-143 | SCREW,CAP-HFH 5/16-18 X 3.50 G5 Z&Y | 1 | $21.95 | |
| 28 | 8020-135 | SCREW,CAP-HFH 5/16-18 X 1.50 G5 Z&Y | 1 | $1.64 | |
| 29 | 1603-968 | SPACER,SADDLE | 1 | $4.95 |
