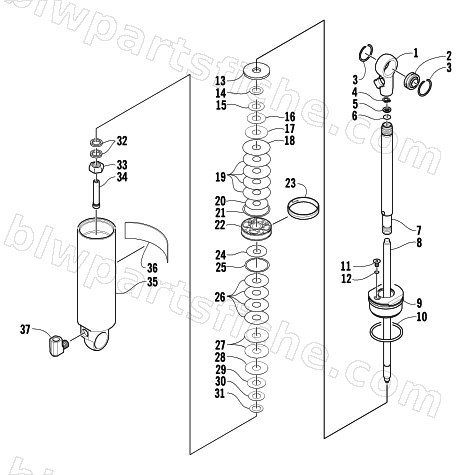

2004 Arctic Cat ARCTIC CAT 440 SNO PRO — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2004 ARCTIC CAT 440 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1704-189 | SHOCK,REAR ARM | 1 | $1,343.95 | |
| 1 | 2604-678 | ADJUST,REBOUND ASSY-W/GROOVES | 1 | $441.95 | |
| 2 | 1604-664 | BEARING,SPHERICAL | 1 | $46.95 | |
| 3 | 2604-714 | RETAINING RING,SNAP-SS INTERNAL | 1 | $5.95 | |
| 4 | 2604-680 | SNAP RING,INTERNAL | 1 | $5.95 | |
| 5 | 2604-681 | WASHER,.252IDX.437ODX.090TH | 1 | $14.95 | |
| 6 | 2604-679 | O-RING,.070C.S.X.239ID | 1 | $5.95 | |
| 7 | 2604-677 | SHAFT,.250ID X .620OD X 7.565TLG | 1 | $188.95 | |
| 8 | 1704-263 | ROD,DAMPING ADJUST-ASSY | 1 | $102.95 | |
| 9 | 2604-569 | BEARING,.625 REAR ARM ASSY | 1 | $148.95 | |
| 10 | 0603-671 | O-RING, RES ENDCAP | 1 | $4.95 | |
| 11 | 2604-530 | SCREW,MACH-HSFH 10-24X.375 SS-ASSY | 1 | $3.95 | |
| 13 | 2604-449 | WASHER, TOPOUT-1.570OD X .500ID X .128TH | 1 | $13.73 | |
| 14 | 2604-478 | VALVE,.950 OD X .504 ID X .006 TH | 1 | $6.95 | |
| 15 | 2604-480 | VALVE,.950 OD X .504 ID X .010 TH | 1 | $13.95 | |
| 16 | 2604-486 | VALVE,1.100 OD X .504 ID X .010 TH | 1 | $13.95 | |
| 17 | 2604-490 | VALVE,1.350 OD X .504 ID X .006 TH | 1 | $10.95 | |
| 18 | 2604-502 | VALVE,1.600 OD X .504 ID X .010 TH | 1 | $12.95 | |
| 19 | 2604-503 | VALVE,1.600 OD X .504 ID X .012 TH | 1 | $12.95 | |
| 20 | 2604-495 | VALVE,1.425 OD X .504 ID X .006 TH | 1 | $12.95 | |
| 21 | 2604-689 | VALVE,RING SHIM-1.600ODX1.435IDX.008THK | 1 | $11.95 | |
| 22 | 2604-673 | PISTON,DAMPING-NO BLEED 1.834 BORE-0/0 | 1 | $98.95 | |
| 23 | 2604-628 | STRAP,PISTON - 5.83"LONG | 1 | $18.95 | |
| 24 | 2604-686 | VALVE,1.250 OD X .504 ID X .010 TH | 1 | $6.95 | |
| 25 | 2604-690 | VALVE,RING SHIM-1.425ODX1.260IDX.015THK | 1 | $11.95 | |
| 26 | 2604-498 | VALVE,1.425 OD X .504 ID X .012 TH | 1 | $12.95 | |
| 27 | 2604-497 | VALVE,1.425 OD X .504 ID X .010 TH | 1 | $12.95 | |
| 28 | 2604-493 | VALVE,1.350 OD X .504 ID X .012 TH | 1 | $12.95 | |
| 29 | 2604-487 | VALVE,1.100 OD X .504 ID X .012 TH | 1 | $6.95 | |
| 30 | 2604-481 | VALVE,.950 OD X .504 ID X .012 TH | 1 | $6.95 | |
| 31 | 2604-476 | VALVE,.800 OD X .504 ID X .015 TH | 1 | $13.95 | |
| 32 | 2604-450 | WASHER, BACKUP 1/2" IDx .700" OD x .100" | 1 | $21.95 | |
| 33 | 2604-448 | NUT,PISTON | 1 | $17.95 | |
| 34 | 2604-674 | JET,DAMPING ADJUST-.122IDX1.405TLG.620SH | 1 | $54.95 | |
| 35 | 2604-671 | BODY,ALUM-IMP EXTR(1.834BORE/8.205TLG) | 1 | $191.95 | |
| 36 | 1603-922 | DECAL,SHOCK-4.88X1.5 | 1 | $22.01 | |
| 37 | 2604-452 | FITTING, 90 DEG-STEEL | 1 | $56.95 |
