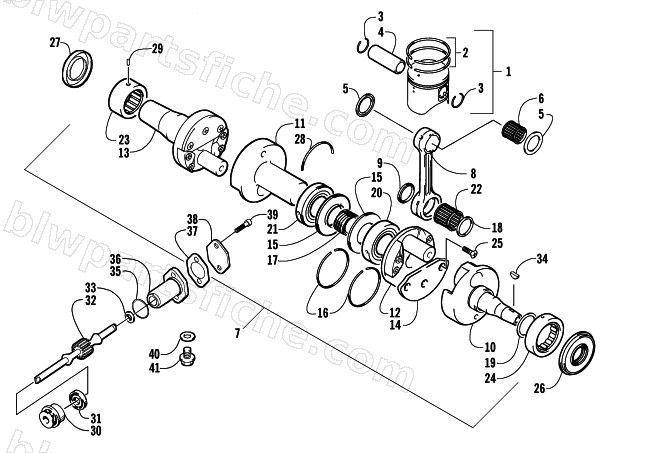

2004 Arctic Cat ARCTIC CAT 440 SNO PRO — PISTON AND CRANKSHAFT ASSEMBLY
2004 ARCTIC CAT 440 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-740 | PISTON SET,04' 440 L/C SNO PRO | 1 | $316.95 | |
| 2 | 3005-838 | RING SET, PISTON ( 600X3-APV ) | 1 | $117.95 | |
| 3 | 3003-537 | CIRCLIP,PISTON PIN,M18 | 1 | $2.75 | |
| 4 | 3005-363 | PIN, PISTON | 1 | $37.95 | |
| 5 | 3004-780 | WASHER,18MM | 1 | $13.73 | |
| 6 | 3003-107 | BEARING,PISTON PIN,ROLLER,M18X23X22 | 1 | $30.95 | |
| 7 | 3006-624 | CRANKSHAFT ASSY, 2003 L/C SNO PRO | 1 | $3,192.95 | |
| 8 | 3006-344 | CONNROD '02 440 SNO PRO | 1 | $285.95 | |
| 9 | 3005-494 | WASHER,CRANKPIN BEARING | 1 | $20.63 | |
| 10 | 3006-625 | CRANKSHAFT COMP,R | 1 | $588.95 | |
| 11 | 3006-626 | CRANKSHAFT,M | 1 | $657.95 | |
| 12 | 3006-627 | WHEEL,CRANKSHAFT | 1 | $424.95 | |
| 13 | 3006-628 | CRANKSHAFT COMP,L | 1 | $585.95 | |
| 14 | 3006-629 | BALANCER,CRANKSHAFT NO. 1 | 1 | $59.95 | |
| 15 | 3005-597 | RACE,MIDDLE CRANK SEAL | 1 | $82.95 | |
| 16 | 3005-508 | RING,MIDDLE CRANK SEAL | 1 | $34.95 | |
| 17 | 3006-353 | GEAR,OIL PUMP DRIVE '02 440 SNO PRO | 1 | $201.95 | |
| 18 | 3005-502 | WASHER,M27X33X1.5 | 1 | $5.92 | |
| 19 | 3005-603 | WASHER,35MM | 1 | $4.26 | |
| 20 | 3005-503 | BEARING,BALL,M30X75X17 | 1 | $136.95 | |
| 21 | 3005-504 | BEARING,BALL,M30X75X17 | 1 | $149.95 | |
| 22 | 3005-505 | BEARING,NEEDLE ROLLER,M27X34X20 | 1 | $112.95 | |
| 23 | 3007-439 | BEARING-LH | 1 | $303.95 | |
| 24 | 3005-507 | BEARING,ROLLER,4.2X19X7.5 | 1 | $348.95 | |
| 25 | 3007-440 | SCREW | 1 | $2.06 | |
| 26 | 3008-525 | SEAL, OIL,M30 | 1 | $73.95 | |
| 27 | 3003-759 | R/B 0930-051 | 1 | $54.95 | |
| 28 | 3003-359 | C-RING,CRANKSHAFT,M75 | 1 | $20.63 | |
| 29 | 3003-658 | PIN,ALIGNMENT | 1 | $3.16 | |
| 30 | 3005-909 | SEAL, MECHANICAL WATER PUMP | 1 | $66.95 | |
| 31 | 3007-431 | OIL SEAL-10X22X6 | 1 | $16.49 | |
| 32 | 3006-354 | GEAR,OIL PUMP DRIVEN '02 440 SNO PRO | 1 | $187.95 | |
| 33 | 3005-049 | SHIM,10MM | 1 | $3.57 | |
| 34 | 3010-070 | KEY,TYPE 3 M3(FASTENER) | 1 | $3.99 | |
| 35 | 3005-126 | O RING | 1 | $4.26 | |
| 36 | 3004-804 | RETAINER PUMP,OIL | 1 | $118.95 | |
| 37 | 3004-286 | GASKET, RETAINER | 1 | $12.35 | |
| 38 | 3006-633 | COVER,RETAINER | 1 | $12.35 | |
| 39 | 3007-426 | BOLT | 1 | $3.16 | |
| 40 | 3402-009 | WASHER, DRIVEN, M6.2X11X1.2 | 1 | $2.47 | |
| 41 | 3423-885 | BOLT,RECOIL STARTER-6X12 | 1 | $2.61 |
