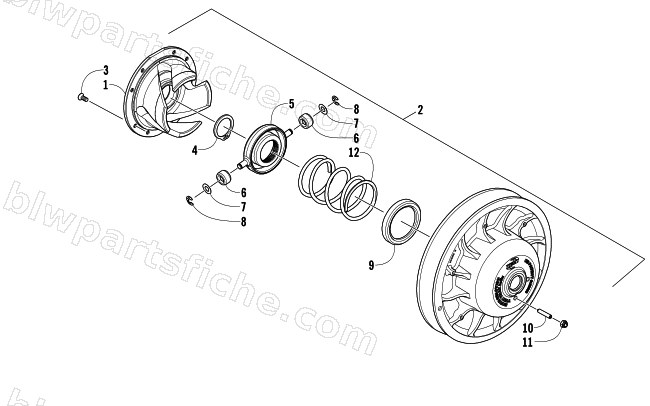

2004 Arctic Cat ARCTIC CAT 440 SNO PRO — DRIVEN CLUTCH
2004 ARCTIC CAT 440 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0726-181 | CLUTCH,DRIVEN-AC 440 (TI) | 1 | $714.95 | |
| 1 | 0648-719 | CAM,10.75"-ASSY(TI)-68-42-34 | 1 | $248.95 | |
| 2 | 0748-609 | CLUTCH, DRIVEN-UNCALIBRATED (TI) | 1 | $431.95 | |
| 3 | 0648-695 | SCREW,CAP-TORX SFCH 1/4-28X.625(TI) | 1 | $8.95 | |
| 4 | 0648-697 | RING,RETAINING-1.5(TI) | 1 | $16.95 | |
| 6 | 0648-699 | ROLLER,CLUTCH(TI) | 1 | $42.95 | |
| 7 | 0648-700 | WASHER,THRUST(TI) | 1 | $1.37 | |
| 8 | 0648-701 | RING,RETAINING-.375(TI) (R/B 0823-440) | 1 | $6.95 | |
| 9 | 0648-703 | WASHER,THRUST(TI) | 1 | $22.01 | |
| 10 | 0648-707 | SCREW,SET HEX SKT-1/4-20X1.25(TI) | 1 | $13.73 | |
| 11 | 0648-708 | NUT,LOCK HEX-1/4-20 CROWNLOCK(TI) | 1 | $12.95 | |
| 12 | 0648-702 | SPRING,CLUTCH-RED/BLK STRIPE 140/240 TI | 1 | $70.95 |
