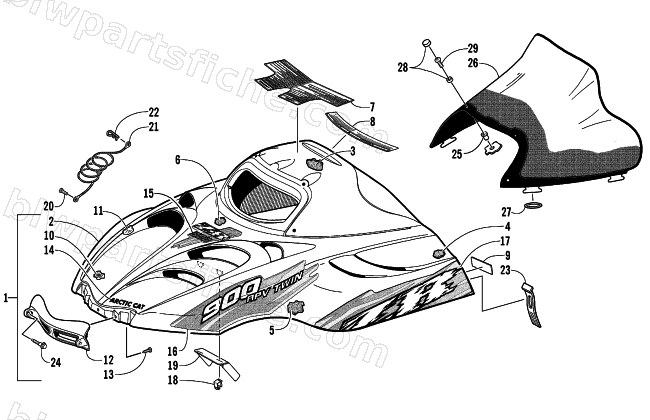

2003 Arctic Cat ZR 900 SNO PRO () — HOOD AND WINDSHIELD ASSEMBLY
2003 ZR 900 SNO PRO ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-215 | HOOD W/DECALS (ZR 900 GRN) | 1 | $1,201.95 | |
| 1 | 1718-216 | HOOD,W/DECAL(ZR 900 BLK) | 1 | $1,201.95 | |
| 2 | 1718-031 | HOOD, W/O DECAL-02 ZR 800 | 1 | $1,168.95 | |
| 2 | 1718-054 | HOOD, W/O DECAL | 1 | $1,201.95 | |
| 4 | 0617-322 | FOAM,HOOD-UPPER RH | 1 | $42.95 | |
| 4 | 0617-323 | FOAM,HOOD-UPPER LH | 1 | $53.95 | |
| 5 | 0617-326 | FOAM,HOOD-REAR RH | 1 | $17.95 | |
| 5 | 0617-327 | FOAM,HOOD-REAR LH | 1 | $29.95 | |
| 6 | 0617-328 | FOAM,HOOD-MIDDLE | 1 | $26.95 | |
| 7 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 8 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 9 | 3611-509 | DECAL, WARNING-SEATING CAPACITY | 1 | $72.95 | |
| 10 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 10 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 11 | 2606-233 | FOIL, HOOD-UPR RH | 1 | $89.95 | |
| 12 | 1606-720 | HINGE, HOOD | 1 | $45.95 | |
| 13 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 14 | 3611-187 | DECAL, HOOD-"ARCTIC CAT"-BLK | 1 | $26.95 | |
| 14 | 3611-679 | DECAL,HOOD-"ARCTIC CAT"- WHITE (CURVED) | 1 | $45.95 | |
| 15 | 4611-929 | DECAL,HOOD-CTR GREEN | 1 | $42.95 | |
| 15 | 4611-686 | DECAL,HOOD-CTR BLK | 1 | $43.95 | |
| 16 | 4611-682 | DECAL,HOOD-ZR 900-RH GRN | 1 | $86.95 | |
| 16 | 4611-683 | DECAL,HOO-ZR 900-LH GRN | 1 | $102.95 | |
| 16 | 4611-684 | DECAL,HOOD-ZR 900-RH BLK | 1 | $79.95 | |
| 16 | 4611-685 | DECAL,HOOD-ZR 900-LH BLK | 1 | $79.95 | |
| 17 | 4611-670 | DECAL,HOOD-LWR RH-GRN | 1 | $82.95 | |
| 17 | 4611-671 | DECAL,HOOD-LWR LH-GRN | 1 | $82.95 | |
| 17 | 4611-674 | DECAL,HOOD-LWR RH BLK | 1 | $136.95 | |
| 17 | 4611-675 | DECAL, HOOD-LWR LH BLK | 1 | $72.95 | |
| 18 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 19 | 2606-613 | AIR DEFLECTOR | 1 | $42.95 | |
| 21 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 23 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 24 | 0623-690 | SCREW,HDHS-1/4-20X1.240 Z&Y | 1 | $24.77 | |
| 25 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 26 | 2606-838 | WINDSHIELD,LOW-CHROME | 1 | $211.95 | |
| 27 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 28 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 29 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 |
