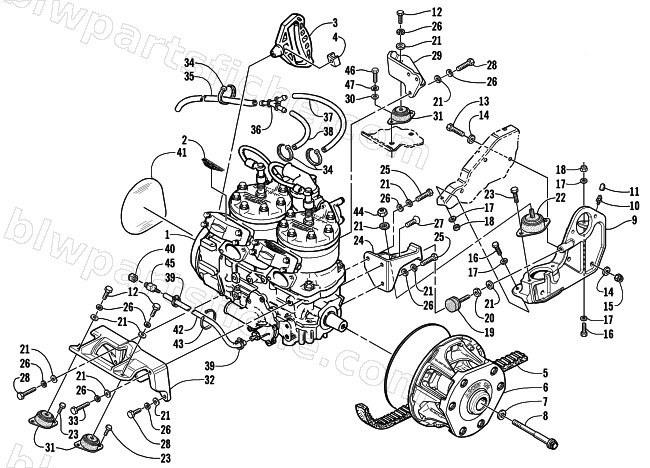

2003 Arctic Cat ZR 900 SNO PRO () — ENGINE AND RELATED PARTS
2003 ZR 900 SNO PRO ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-379 | ENGINE, 900 L/C CARB-LOW ALT.-'05 | 1 | $7,417.95 | |
| 2 | 3611-967 | DECAL, APV | 1 | $19.95 | |
| 3 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 4 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 5 | 0627-020 | BELT,DRIVE-CVT 12.2" CTRS. | 1 | $133.95 | |
| 6 | 0746-836 | CLUTCH,DRIVE-UNCAL-8.25 33MM/D | 1 | $668.95 | |
| 7 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 8 | 0623-913 | BOLT, CLUTCH - 1/2-20 X 5.92 - 12 PT | 1 | $17.87 | |
| 9 | 0708-139 | BRKT,BEARING SUPPORT-ASSY | 1 | $109.95 | |
| 10 | 0623-899 | ZERK, GREASE DRIVE | 1 | $2.88 | |
| 11 | 0623-904 | CAP, GREASE FITTING | 1 | $0.85 | |
| 12 | 8002-221 | SCREW,CAP-HH 3/8-16 X.875 G5 Z&Y | 1 | $0.95 | |
| 13 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 14 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 15 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 16 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 17 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 18 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 19 | 0608-355 | R/B 0608-784 | 1 | $19.95 | |
| 20 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 21 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 22 | 0708-145 | MOUNT,ENGINE-ASSY | 1 | $40.95 | |
| 23 | 0623-765 | SCREW,SELF TAP-HWH 5/16-18X.625 TT Z&Y | 1 | $1.23 | |
| 24 | 0708-137 | BRKT,ENG MTG-LH-REAR MACH | 1 | $64.95 | |
| 25 | 8005-674 | SCREW, CAP-HSH 3/8-16X1.25 Z&Y | 1 | $1.37 | |
| 26 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 27 | 0623-881 | SCREW, MACH,HSFH 3/8-16X1.00 Z&Y | 1 | $1.37 | |
| 28 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 29 | 0708-123 | BRKT, ENG,MTG-RH REAR MACH | 1 | $64.95 | |
| 30 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 31 | 0608-645 | MOUNT,ENGINE | 1 | $113.95 | |
| 32 | 0708-116 | BRKT,ENG MTG-FRONT-MACH | 1 | $121.95 | |
| 33 | 8002-229 | SCREW,CAP-HH 3/8-16 X2.50 G5 Z&Y | 1 | $1.50 | |
| 34 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 35 | 0610-365 | HOSE,DRAIN-VEV (EXIT) | 1 | $15.95 | |
| 36 | 0670-875 | FITTING,'Y' (1/2 X 1/2 X 1/2) | 1 | $19.25 | |
| 37 | 0610-364 | HOSE,DRAIN-VEV (PTO) | 1 | $19.25 | |
| 38 | 0610-363 | HOSE,DRAIN-VEV (MAG) | 1 | $15.95 | |
| 39 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 40 | 1670-303 | CAP, DRAIN-2002 800 L/C | 1 | $2.88 | |
| 41 | 1670-328 | FOIL, PROTECTIVE-RECOIL COVER-DIE CUT | 1 | $16.49 | |
| 42 | 0610-076 | HOSE, WATER-10 FT {0619-124} | 1 | $65.95 | |
| 43 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 44 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 45 | 0623-976 | ADAPTER, DRAIN-2002 800 L/C | 1 | $2.75 | |
| 46 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 47 | 8051-247 | WASHER,SPR LOCK-5/16 .314X.593X.097 Z&Y | 1 | $0.40 |
