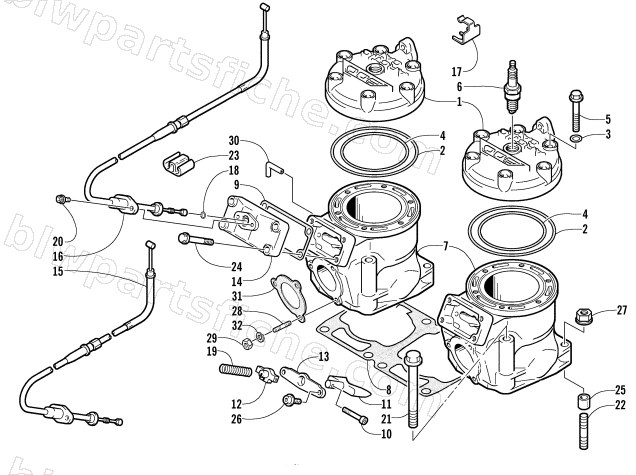

2003 Arctic Cat ZR 900 SNO PRO () — CYLINDER AND HEAD ASSEMBLY
2003 ZR 900 SNO PRO ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-390 | HEAD,CYL 860 L/C | 1 | $303.95 | |
| 2 | 3004-081 | O-RING,HEAD-OUTER | 1 | $23.39 | |
| 3 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 | |
| 4 | 3005-854 | O-RING | 1 | $30.95 | |
| 5 | 3006-538 | BOLT,CYL HEAD | 1 | $5.65 | |
| 6 | 0217-709 | SPARK PLUG, BR9EYA | 1 | $5.09 | |
| 7 | 3006-391 | CYLINDER COMP, ZR 900 | 1 | $1,249.95 | |
| 8 | 3005-951 | GASKET, CYL (REPLACES 2 OF 3005-858) | 1 | $65.95 | |
| 9 | 3005-283 | GASKET,CYL.COVER | 1 | $12.35 | |
| 10 | 3005-983 | PIN, EXHAUST VALVE 02 500 L/C | 1 | $19.25 | |
| 11 | 3006-392 | VALVE, EXHAUST 860 L/C | 1 | $307.95 | |
| 12 | 3005-860 | STOPPER, EXHAUST VALVE | 1 | $65.95 | |
| 13 | 3005-861 | PLATE, EXHAUST VALVE | 1 | $43.95 | |
| 14 | 3005-662 | COVER,CYLINDER | 1 | $129.95 | |
| 15 | 3006-695 | CABLE,EXHAUST VALVE ( PTO ) | 1 | $117.95 | |
| 16 | 3006-694 | CABLE,EXHAUST VALVE ( MAGNETO ) | 1 | $102.95 | |
| 17 | 3005-747 | HOLDER, EXHAUST VALVE CABLE | 1 | $15.11 | |
| 18 | 3005-226 | O RING, WATER DRAIN | 1 | $5.09 | |
| 19 | 3005-945 | SPRING | 1 | $6.95 | |
| 20 | 3007-433 | BOLT | 1 | $3.16 | |
| 21 | 3005-846 | BOLT, 10X115 | 1 | $12.35 | |
| 22 | 3005-847 | BOLT, STUD | 1 | $9.59 | |
| 23 | 3005-808 | CLAMP | 1 | $6.95 | |
| 24 | 3007-381 | BOLT | 1 | $3.16 | |
| 25 | 3004-975 | PIN, CYLINDER KNOCK(ALIGMENT) | 1 | $2.61 | |
| 26 | 3006-389 | BOLT,6X16 '02 860 L/C | 1 | $3.95 | |
| 27 | 3007-391 | NUT,INTER COOLER BRKT | 1 | $3.16 | |
| 28 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 29 | 3007-416 | NUT | 1 | $2.75 | |
| 30 | 2670-203 | FITTING,90 ELBOW-3/16 BARB X .220 ID | 1 | $14.95 | |
| 31 | 3005-880 | GASKET, EXHAUST | 1 | $19.25 | |
| 32 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 |
