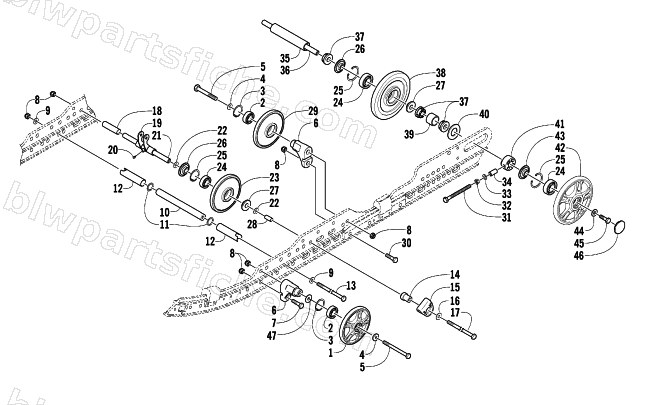

2003 Arctic Cat ZR 800 EFI SNO PRO () — IDLER WHEEL ASSEMBLY
2003 ZR 800 EFI SNO PRO ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3604-042 | WHEEL,IDL-5.63 W.787"ID GRN | 1 | $53.95 | |
| 1 | 3604-038 | WHEEL,IDL-5.63 W.787"ID RED | 1 | $45.95 | |
| 2 | 3604-033 | BEARING,WHL-NSK CHINA 6004-W/ENS GREASE | 1 | $20.63 | |
| 3 | 0623-946 | RING,INTERNAL RETAINING-#165 | 1 | $2.06 | |
| 4 | 0623-664 | WASHER,FLAT 1.00X.390X.164 Z&Y | 1 | $1.23 | |
| 5 | 8002-232 | SCREW,CAP-HH 3/8-16 X3.25 G5 Z&Y | 1 | $2.06 | |
| 6 | 2604-579 | BLOCK,MTG-IDLER WHEEL(DIE CAST) | 1 | $45.95 | |
| 7 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 8 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 9 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 10 | 1604-792 | AXLE, STEEL-7/8 X 3/8 X 8.750 ZY | 1 | $58.95 | |
| 11 | 0623-912 | WASHER,FLAT-.890 X 1.19 X .060 Z&Y | 1 | $0.95 | |
| 12 | 1604-793 | SPACER,FRONT ARM SHOCK | 1 | $29.95 | |
| 13 | 0623-907 | SCREW, CAP-HH 3/8-16X10.0 GR5 Z&Y | 1 | $4.26 | |
| 14 | 0604-912 | BLOCK,SLIDE-SPRING-MTG | 1 | $27.95 | |
| 15 | 2604-515 | SLIDE, SPRING-SHORT | 1 | $5.92 | |
| 16 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 17 | 0623-734 | SCREW,CAP-3/8 -16 X 12.75" | 1 | $20.95 | |
| 18 | 0603-105 | SPACER,AUX WHEEL-INSIDE | 1 | $13.73 | |
| 19 | 0704-589 | PIVOT,REAR SHOCK-PTD BLK | 1 | $30.95 | |
| 20 | 0623-922 | FITTING,GREASE-PRESS FIT W/CHK BALL | 1 | $1.92 | |
| 21 | 1604-209 | AXLE,STEEL-8.75 (THRU BOLT) | 1 | $73.95 | |
| 22 | 0623-675 | WASHER, FLAT-.641 X 1.187 X .060 Z&Y | 1 | $0.95 | |
| 23 | 0604-459 | WHEEL,IDLER | 1 | $53.95 | |
| 24 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 25 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 26 | 1604-772 | INSERT,5/8 BORE X 2 OD (SHORT) | 1 | $5.51 | |
| 27 | 1604-773 | INSERT,5/8 BORE X 1.580 OD | 1 | $5.51 | |
| 28 | 1604-213 | SPACER,ALUM-THK WALL 1.410 | 1 | $33.95 | |
| 29 | 3604-039 | WHEEL,IDL-5.63 W.787"ID BLK (NO SPOKE) | 1 | $53.95 | |
| 31 | 0623-123 | SCREW,CAP-HEX-3/8-16X5 | 1 | $2.47 | |
| 32 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 33 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 34 | 0604-298 | SPACER,SHOCK LINK-Z&Y | 1 | $33.95 | |
| 35 | 1704-466 | SPACER,REAR WHEEL-PTD BLK | 1 | $17.87 | |
| 36 | 0604-208 | AXLE,REAR WHEEL | 1 | $53.95 | |
| 37 | 0604-968 | BUSHING,SPACER-REAR WHEEL | 1 | $9.59 | |
| 38 | 1604-685 | WHEEL,IDL-6.38(2-5/8DIA INSR) | 1 | $53.95 | |
| 39 | 0604-937 | SPACER,REAR WHEEL -OUTER | 1 | $12.35 | |
| 40 | 0623-220 | WASHER,FLAT .625IDX1.50ODX.109 | 1 | $4.95 | |
| 41 | 0604-936 | BUSHING,REAR WHEEL ADJUSTER | 1 | $10.97 | |
| 42 | 1604-692 | WHEEL,IDL-6.38 SPOKED(1L-5/8DIA INSR)GRN | 1 | $53.95 | |
| 43 | 1604-774 | INSERT,5/8 BORE X 2" (LONG) | 1 | $6.34 | |
| 44 | 0123-570 | WASHER,FLAT .390X1.38X.134 | 1 | $5.92 | |
| 45 | 8002-223 | SCREW,CAP-HH 3/8-16 X1.125 G5 Z&Y | 1 | $8.21 | |
| 46 | 0604-246 | CAP,IDLER WHEEL-BLACK (DP 1500) | 1 | $3.16 | |
| 47 | 1604-187 | WASHER, OFFSET ARM | 1 | $2.06 |
