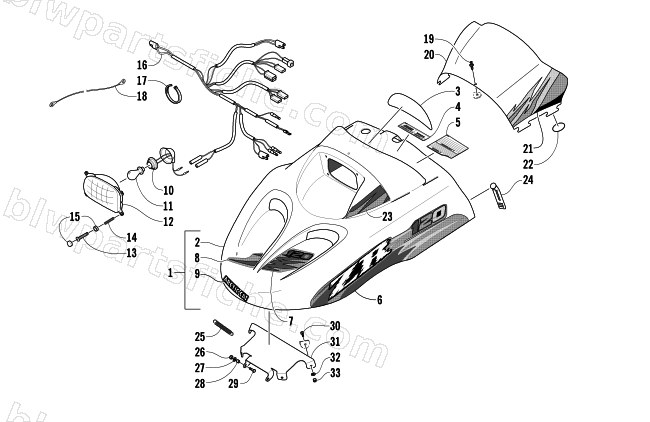

2003 Arctic Cat ZR 120 — HOOD, HEADLIGHT, AND WINDSHIELD ASSEMBLY
2003 ZR 120
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-232 | HOOD W/DECALS-03 ZR 120 | 1 | $759.95 | |
| 2 | 1718-193 | HOOD W/O DECALS- 02 ZR 120 | 1 | $679.95 | |
| 3 | 3611-675 | DECAL,INSTRUMENT PANEL | 1 | $36.95 | |
| 4 | 3611-755 | DECAL, CAUTION-THROTTLE | 1 | $6.47 | |
| 5 | 3611-678 | DECAL,WARNING-HOOD | 1 | $5.95 | |
| 6 | 4611-762 | DECAL, HOOD,LOWER-RH | 1 | $77.95 | |
| 6 | 4611-763 | DECAL, HOOD,LOWER-LH | 1 | $74.95 | |
| 7 | 4611-764 | DECAL, HOOD-CREST-LH-ZR 120 | 1 | $20.63 | |
| 8 | 4611-765 | DECAL, HOOD-CREST-RH-ZR 120 | 1 | $19.25 | |
| 9 | 4611-926 | DECAL, "AC" FRONT-ZR 120 | 1 | $23.39 | |
| 11 | 0609-004 | BULB, HEADLIGHT | 1 | $17.87 | |
| 12 | 0609-003 | HEADLAMP ASSY | 1 | $187.95 | |
| 14 | 0123-614 | SPRING,ADJUSTMENT | 1 | $1.92 | |
| 15 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 16 | 0686-684 | HARNESS, MAIN | 1 | $120.95 | |
| 17 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 18 | 0606-121 | HOOD CABLE - 34" | 1 | $15.11 | |
| 19 | 0623-243 | CLIP,HOOD VENT | 1 | $1.50 | |
| 20 | 2606-767 | WINDSHIELD, GREEN ZR 120 | 1 | $85.95 | |
| 21 | 4611-932 | DECAL, WINDSHIELD-RH | 1 | $39.95 | |
| 21 | 4611-933 | DECAL, WINDSHIELD-LH | 1 | $38.95 | |
| 22 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 23 | 4611-934 | DECAL, HOOD-WINDSHIELD-RH ZR 120 | 1 | $19.95 | |
| 23 | 4611-935 | DECAL, HOOD-WINDSHIELD-LH ZR 120 | 1 | $19.95 | |
| 24 | 1606-930 | STRAP, HOLDDOWN-HOOD | 1 | $12.35 | |
| 25 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 26 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 27 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 28 | 0107-234 | BUSHING,TIGHTENER ARM | 1 | $16.95 | |
| 29 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 30 | 0623-420 | SCREW,HWH #10-24X5/8 Z&Y | 1 | $0.95 | |
| 31 | 2706-140 | BRKT, UPPER MTG-HOOD-PTD BLK | 1 | $26.95 | |
| 32 | 0623-594 | WASHER,FLAT-.203 X .562 X .040 | 1 | $0.95 | |
| 33 | 0623-392 | NUT,FLEX LOCK 10-24 | 1 | $1.50 |
