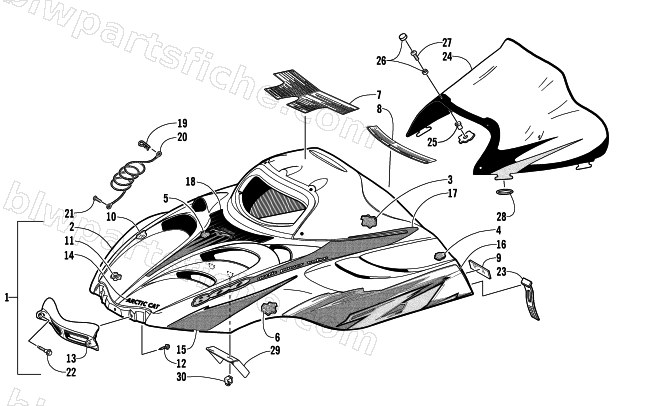

2003 Arctic Cat ZL 800 EFI SS () — HOOD AND WINDSHIELD ASSEMBLY
2003 ZL 800 EFI SS ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-283 | HOOD W/DECALS (03 ZL 800 SS-BLK) | 1 | $1,312.95 | |
| 1 | 1718-281 | HOOD W/DECALS (ZL 800 SS GUN) | 1 | $1,295.95 | |
| 2 | 1718-282 | HOOD W/O DECALS (03 ZL800 SS-BLK) | 1 | $1,090.95 | |
| 2 | 1718-280 | HOOD W/O DECALS (ZL 800 SS) | 1 | $1,090.95 | |
| 4 | 0617-322 | FOAM,HOOD-UPPER RH | 1 | $42.95 | |
| 4 | 0617-323 | FOAM,HOOD-UPPER LH | 1 | $53.95 | |
| 5 | 0617-328 | FOAM,HOOD-MIDDLE | 1 | $26.95 | |
| 6 | 0617-326 | FOAM,HOOD-REAR RH | 1 | $17.95 | |
| 6 | 0617-327 | FOAM,HOOD-REAR LH | 1 | $29.95 | |
| 7 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 8 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 9 | 3611-509 | DECAL, WARNING-SEATING CAPACITY | 1 | $72.95 | |
| 10 | 2606-233 | FOIL, HOOD-UPR RH | 1 | $89.95 | |
| 11 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 11 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 12 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 13 | 1606-720 | HINGE, HOOD | 1 | $45.95 | |
| 14 | 3611-186 | DECAL, HOOD-"ARCTIC CAT"-GRN-CURVED | 1 | $21.95 | |
| 14 | 3611-187 | DECAL, HOOD-"ARCTIC CAT"-BLK | 1 | $26.95 | |
| 15 | 4611-576 | DECAL, HOOD FWD SIDE RH (ZL BLK) | 1 | $64.95 | |
| 15 | 4611-577 | DECAL, HOOD FWD SIDE LH (ZL BLK) | 1 | $64.95 | |
| 15 | 4611-600 | DECAL, HOOD FWD SIDE RH (SILVER) | 1 | $64.95 | |
| 15 | 4611-599 | DECAL, HOOD FWD SIDE LH (SILVER) | 1 | $64.95 | |
| 16 | 4611-574 | DECAL, HOOD LOWER RH (ZL BLK) | 1 | $101.95 | |
| 16 | 4611-575 | DECAL, HOOD LOWER LH (ZL BLK) | 1 | $101.95 | |
| 16 | 4611-598 | DECAL, HOOD LWR RH (SILVER) | 1 | $101.95 | |
| 16 | 4611-597 | DECAL, HOOD LWR LH (SILVER) | 1 | $101.95 | |
| 17 | 4611-622 | DECAL, HOOD UPPER RH (800 EFI ESR) | 1 | $93.95 | |
| 17 | 4611-623 | DECAL, HOOD UPPER LH (800 EFI ESR BLK) | 1 | $91.95 | |
| 17 | 4611-626 | DECAL, HOOD UPPER RH(800 GUNMET) | 1 | $93.95 | |
| 17 | 4611-627 | DECAL, HOOD UPPER LH (800 GUN) | 1 | $91.95 | |
| 18 | 4611-578 | DECAL, HOOD CREST | 1 | $41.95 | |
| 18 | 4611-601 | DECAL, HOOD CREST (ZL SILVER) | 1 | $41.95 | |
| 20 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 22 | 0623-690 | SCREW,HDHS-1/4-20X1.240 Z&Y | 1 | $24.77 | |
| 23 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 24 | 2606-635 | WINDSHIELD,MED-W/GRAPHICS (03 BLK ZL) | 1 | $232.95 | |
| 24 | 2606-636 | WINDSHIELD, W/GRAPHICS-SILVER ZL | 1 | $240.95 | |
| 25 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 26 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 27 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 28 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 29 | 2606-613 | AIR DEFLECTOR | 1 | $42.95 | |
| 30 | 0123-394 | CLIP CABLE | 1 | $1.37 |
