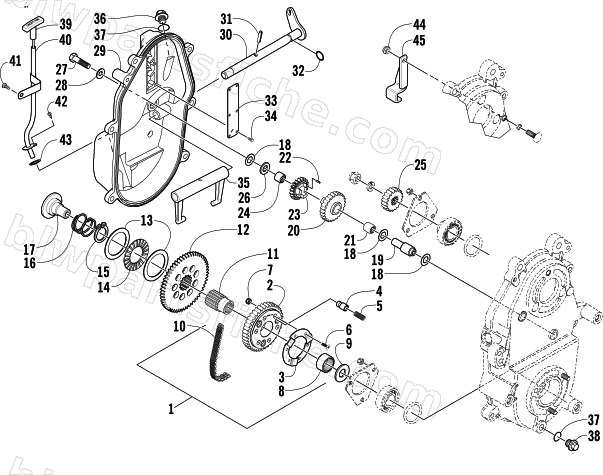

2003 Arctic Cat ZL 800 EFI SS () — DRIVE/REVERSE DROPCASE ASSEMBLY (OPTIONAL)
2003 ZL 800 EFI SS ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1639-927 | KIT, REVERSE 24:39/15W | 1 | $684.95 | |
| 0 | 1639-926 | KIT, REVERSE - 23:40/15W | 1 | $684.95 | |
| 1 | 0702-394 | SPROCKET,40T X 15 WIDE - ASSY | 1 | $365.95 | |
| 3 | 0602-144 | RETAINER,SPRING | 1 | $13.73 | |
| 4 | 0602-133 | PIN,SLIP-.993 LG | 1 | $17.87 | |
| 5 | 0602-138 | SPRING,COMPRESSION-REVERSE | 1 | $3.02 | |
| 6 | 0623-182 | SCREW,CAP-HSBH 10-32 X .875 | 1 | $0.26 | |
| 7 | 0123-430 | NUT,FLEX,LOCK 10-32 | 1 | $2.61 | |
| 8 | 0602-016 | BEARING,J-2012 DC-1.250 | 1 | $23.39 | |
| 9 | 0602-012 | SPACER, EXT SHAFT-1.0 X 2.0 X .155TH | 1 | $19.25 | |
| 10 | 0602-972 | CHAIN, 72P (15 WIDE) | 1 | $142.95 | |
| 11 | 1602-048 | SHAFT, EXTENSION | 1 | $129.95 | |
| 12 | 0702-048 | GEAR, 55T REVERSE-ASSY | 1 | $429.95 | |
| 13 | 0602-023 | WASHER,THRUST-2.25 | 1 | $15.11 | |
| 14 | 0602-022 | BEARING,THRUST | 1 | $23.39 | |
| 15 | 0602-024 | RING,RETAINING | 1 | $3.99 | |
| 16 | 0602-028 | SPRING, RETURN | 1 | $22.01 | |
| 17 | 0638-881 | KIT, REVERSE DRIVE ADAPTER | 1 | $51.95 | |
| 18 | 0602-215 | WASHER, THRUST-.625 ID X.030 X 1.105OD | 1 | $3.85 | |
| 19 | 0602-872 | SHAFT, REVERSE IDLER | 1 | $113.95 | |
| 20 | 0702-323 | SPROCKET, 22T IDLER ASSY | 1 | $235.95 | |
| 21 | 0602-205 | BEARING, CAGED-.875 X 1.00 | 1 | $38.95 | |
| 22 | 0602-366 | PIN, ALIGNING-IDLERS | 1 | $1.37 | |
| 23 | 0702-365 | GEAR, 19T IDLER - ASSY | 1 | $178.95 | |
| 24 | 1602-045 | BEARING,DC-.625 X .625 | 1 | $19.25 | |
| 25 | 0602-974 | SPROCKET, 24T (15 WIDE) | 1 | $93.95 | |
| 25 | 1602-118 | SPROCKET, UPPER-23T 15 WIDE | 1 | $82.95 | |
| 26 | 1602-044 | WASHER, THRUST-.625 ID X .126 X 1.125 OD | 1 | $13.73 | |
| 27 | 8002-130 | SCREW, CAP-HH 5/16-18 X .75 G5 Z&Y | 1 | $0.68 | |
| 28 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 29 | 1602-222 | COVER, DROPCASE-PTD BLK-REV (DIPSTICK) | 1 | $159.95 | |
| 30 | 0702-350 | SHAFT,SHIFT FORK-PTD BLK | 1 | $85.95 | |
| 31 | 0623-542 | PIN,SPRING-3/16 X 7/8 COILED BLK | 1 | $1.92 | |
| 32 | 0602-021 | SEAL,O-RING .50 OD | 1 | $0.54 | |
| 33 | 1602-151 | COVER, OIL VENT - REVERSE | 1 | $38.95 | |
| 34 | 0623-081 | SCREW,SELF TAP-PHPNH 8-32X.31 F Z&Y | 1 | $0.26 | |
| 35 | 0602-085 | FORK,SHIFT-MACHINED | 1 | $96.95 | |
| 36 | 0623-293 | PLUG, DRAIN | 1 | $2.61 | |
| 37 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 38 | 0602-479 | PLUG, DRAIN-MAGNETIC | 1 | $22.01 | |
| 39 | 1602-107 | DIPSTICK, DROPCASE | 1 | $53.95 | |
| 40 | 1602-106 | TUBE, DIPSTICK - WELDMENT | 1 | $39.95 | |
| 41 | 0623-640 | SCREW,SELF TAP-HWH 5/16-18X1.0-TT Z & Y | 1 | $0.85 | |
| 42 | 0623-786 | SCREW,SELF TAP-TSPNH 10-24X.375 | 1 | $1.78 | |
| 43 | 0605-014 | O-RING,RUBBER | 1 | $0.26 | |
| 44 | 0623-122 | NUT ,FLEX LOCK-THIN 1/4-20 | 1 | $1.50 | |
| 45 | 0702-555 | BRACKET, CHAIN BACKING-WELDT(0602-900) | 1 | $110.95 |
