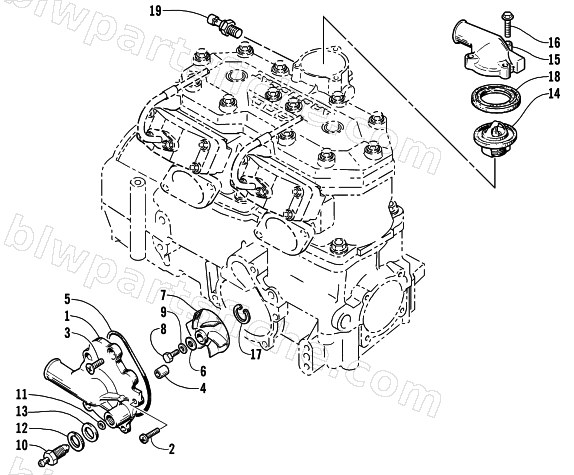

2003 Arctic Cat ZL 600 EFI SS () — WATER PUMP AND THERMOSTAT
2003 ZL 600 EFI SS ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-519 | CASE, WATER PUMP | 1 | $283.95 | |
| 2 | 3007-555 | SCREW | 1 | $2.47 | |
| 3 | 3007-440 | SCREW | 1 | $2.06 | |
| 4 | 3005-206 | PIN (H:10),DOWEL | 1 | $3.30 | |
| 5 | 3003-372 | GASKET,O-RING PUMP | 1 | $17.87 | |
| 6 | 3003-432 | WASHER,6MM | 1 | $3.85 | |
| 7 | 3005-697 | IMPELLER,WATER PUMP | 1 | $54.95 | |
| 8 | 3003-426 | BOLT, 6 X 13 YEL CHROM. | 1 | $2.75 | |
| 9 | 3003-431 | WASHER,6MM | 1 | $3.44 | |
| 10 | 3003-618 | DRAIN,WATER | 1 | $47.95 | |
| 11 | 3005-226 | O RING, WATER DRAIN | 1 | $5.09 | |
| 12 | 3004-472 | WASHER, LOCK,12MM | 1 | $3.85 | |
| 13 | 3007-716 | WASHER,12MM | 1 | $3.16 | |
| 14 | 3004-964 | THERMOSTAT, WATER | 1 | $106.95 | |
| 15 | 3003-924 | CAP,THERMOSTAT | 1 | $79.95 | |
| 16 | 3007-380 | BOLT | 1 | $3.16 | |
| 17 | 3007-714 | CIRCLIP,BEARING FASTENER | 1 | $4.68 | |
| 18 | 3003-495 | GASKET,THERMOSTAT | 1 | $15.11 | |
| 19 | 0630-141 | SWITCH,TEMP-L/C 200F | 1 | $58.95 |
