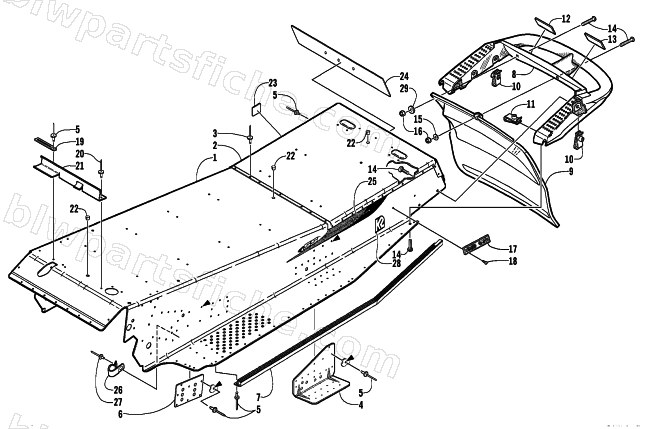

2003 Arctic Cat ZL 600 EFI SS () — TUNNEL AND REAR BUMPER
2003 ZL 600 EFI SS ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-314 | TUNNEL-S/P ASSY-UNPTD | 1 | $766.95 | |
| 2 | 2606-867 | PLATE, END-REAR TUNNEL UNPTD | 1 | $144.95 | |
| 3 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 3 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 4 | 1706-902 | BRKT, SUSP-RH-PTD BLK | 1 | $69.95 | |
| 4 | 1706-903 | BRKT, SUSP-LH-PTD BLK | 1 | $36.95 | |
| 5 | 0123-418 | RIVET, SOLID ALUM-.156 X.312 | 1 | $0.68 | |
| 5 | 0623-072 | RIVET,SOLID ALUM-156 X370 | 1 | $0.15 | |
| 5 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 6 | 2706-116 | PLATE, BODY-REINFORCEMENT-PTD BLK | 1 | $6.75 | |
| 7 | 2606-426 | ROLL,TUNNEL-RH-FORMED | 1 | $54.95 | |
| 7 | 2606-425 | ROLL,TUNNEL-LH-FORMED | 1 | $54.95 | |
| 8 | 1606-200 | BUMPER,REAR-Z,ZL,ZR | 1 | $142.95 | |
| 9 | 1606-202 | SNOWFLAP-BLK (99 PROD) | 1 | $96.95 | |
| 9 | 1606-507 | SNOWFLAP, REV. | 1 | $74.95 | |
| 10 | 0623-771 | NUT,U-1/4-20 (.50 X .25 PANEL) | 1 | $1.64 | |
| 11 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 12 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 13 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 14 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 15 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 16 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 17 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 18 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 19 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 20 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 21 | 0707-704 | BRKT, MAIN HARNESS PROTECTOR-PTD BLK | 1 | $17.95 | |
| 22 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 23 | 0411-053 | DECAL,TUBE-CE | 1 | $100.95 | |
| 24 | 4611-421 | DECAL, FASTRACK/FS | 1 | $88.95 | |
| 25 | 4611-816 | DECAL, TUNNEL-RH(ZL SS-BLK) | 1 | $63.95 | |
| 25 | 4611-817 | DECAL, TUNNEL-LH (ZL SS-BLK) | 1 | $66.95 | |
| 25 | 4611-818 | DECAL, TUNNEL-RH (ZL SS-SLVR) | 1 | $63.95 | |
| 25 | 4611-819 | DECAL, TUNNEL-LH (ZL SS-SLVR) | 1 | $63.95 | |
| 26 | 1623-015 | CLAMP, DOUBLE TUBE | 1 | $2.47 | |
| 27 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 | |
| 28 | 4611-568 | DECAL, K2 TUNNEL | 1 | $10.97 | |
| 29 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 |
