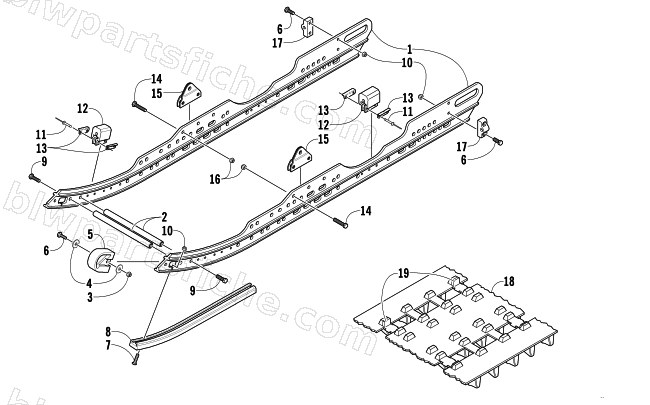

2003 Arctic Cat ZL 550 (ESR ) — SIDE RAIL AND TRACK ASSEMBLY
2003 ZL 550 (ESR )
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 7996-485 | REAR, SUSP MFG ASSY ('03 ZL) | 1 | $3,524.95 | |
| 0 | 7996-528 | REAR SUSP MFG ASSY (550 ESR GUNMET) | 1 | $3,524.95 | |
| 1 | 2604-050 | RAIL, 121"-FORMED-STAMPED (WIDE PROFILE) | 1 | $331.95 | |
| 2 | 0604-426 | AXLE, XBRC-.625X8.750 (5/16-18) | 1 | $34.95 | |
| 3 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 4 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 5 | 1604-137 | NOSEPIECE,RAIL-BLUNT | 1 | $6.75 | |
| 6 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 7 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 8 | 2604-257 | WEARSTRIP,SLIDE RAIL-BLK | 1 | $33.95 | |
| 9 | 8002-134 | SCREW,CAP-HH 5/16-18 X1.25 G5 Z&Y | 1 | $0.65 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 12 | 0604-918 | PAD,SHOCK-RUBBER | 1 | $13.73 | |
| 13 | 0604-967 | BRACKET,RETAINING-SHOCK PAD | 1 | $3.57 | |
| 14 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 15 | 0704-395 | BRKT,MTG-FRONT ARM-PTD BLK | 1 | $20.63 | |
| 16 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 17 | 0704-352 | ADJUSTER,TRACK-MACH. | 1 | $24.77 | |
| 18 | 2602-002 | TRACK, RIPSAW - 15X121X1.25" | 1 | $939.95 | |
| 19 | 2602-383 | CLIP,GUIDE | 1 | $4.26 |
