2003 Arctic Cat Z 440 SNO PRO — CONSOLE, SWITCHES, AND WIRING ASSEMBLIES

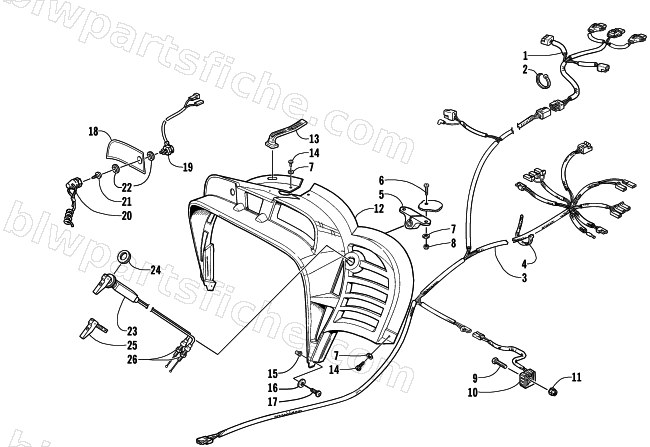

2003 Z 440 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0686-515 | HARNESS, HOOD-W/ 3 BULB HL | 1 | $132.95 | |
| 2 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 3 | 0686-861 | HARNESS,MAIN-03 Z SNO PRO | 1 | $285.95 | |
| 4 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 5 | 1706-193 | BUSHING,RECOIL-MACH | 1 | $20.95 | |
| 6 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 7 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 8 | 8040-276 | NUT,HEX LOCK-NYL 10-32 Z&Y | 1 | $0.15 | |
| 9 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 10 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 11 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 12 | 2606-895 | CONSOLE,NO KEY-W/TETHER | 1 | $288.95 | |
| 13 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 14 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 15 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 16 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 17 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 18 | 5611-124 | PLATE,CONSOLE SWITCH-LH | 1 | $35.95 | |
| 19 | 0709-064 | TETHER SWITCH-ASSY (OPEN) | 1 | $55.95 | |
| 20 | 0709-055 | TETHER CORD W/ SCREW | 1 | $34.95 | |
| 22 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 23 | 0687-007 | CABLE,CHOKE-DUAL | 1 | $84.95 | |
| 24 | 0623-054 | NUT,PLASTIC-CHOKE | 1 | $4.40 | |
| 25 | 0636-062 | LEVER KIT,CHOKE | 1 | $12.35 | |
| 26 | 0623-464 | NUT, LOCKING-THROTTLE CABLE | 1 | $0.26 |
