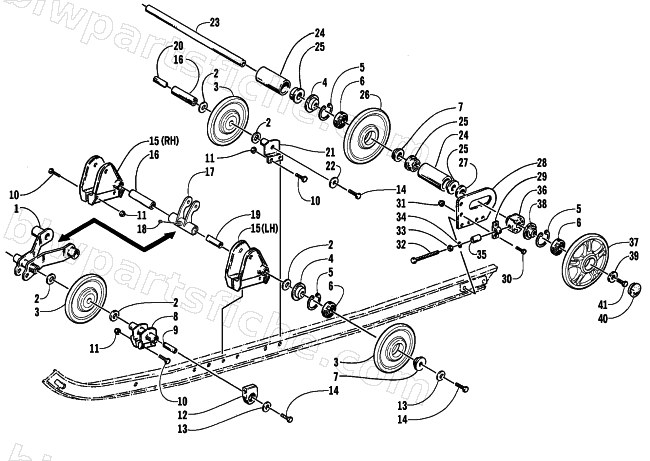

IDLER WHEEL ASSEMBLY
2003 Z 370 (ESR)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0704-319 | BRACKET,FRONT SHOCK-PTD BLK | 1 | $54.95 | |
| 2 | 0123-439 | WSHR,FLAT 21/32X1-1/8X.048 Z&Y | 1 | $0.40 | |
| 3 | 0114-240 | WHEEL,IDLER | 1 | $53.95 | |
| 4 | 1604-773 | INSERT,5/8 BORE X 1.580 OD | 1 | $5.51 | |
| 5 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 6 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 7 | 1604-772 | INSERT,5/8 BORE X 2 OD (SHORT) | 1 | $5.51 | |
| 8 | 0704-201 | BRACKET,AUX WHEEL-PTD BLK | 1 | $26.95 | |
| 10 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 11 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 12 | 2604-515 | SLIDE, SPRING-SHORT | 1 | $5.92 | |
| 13 | 0123-260 | WSHR,.343X1 1/8X.120TH Z&Y | 1 | $1.50 | |
| 14 | 8002-132 | SCREW,CAP-HH 5/16-18 X1.00 G5 Z&Y | 1 | $0.95 | |
| 15 | 0704-190 | BRACKET,MTG-FRONT ARM R/H-PTD BLK | 1 | $50.95 | |
| 15 | 0704-191 | BRACKET,MTG-FRONT ARM L/H-PTD BLK | 1 | $52.95 | |
| 16 | 0603-105 | SPACER,AUX WHEEL-INSIDE | 1 | $13.73 | |
| 17 | 0704-589 | PIVOT,REAR SHOCK-PTD BLK | 1 | $30.95 | |
| 18 | 0623-922 | FITTING,GREASE-PRESS FIT W/CHK BALL | 1 | $1.92 | |
| 20 | 0604-142 | AXLE,INNER AUX WHEEL | 1 | $44.95 | |
| 21 | 0704-196 | SUPPORT,AUX WHEEL-PTD BLK | 1 | $26.95 | |
| 22 | 0623-140 | WASHER,FLAT .344X.875X.120 | 1 | $0.68 | |
| 23 | 0604-208 | AXLE,REAR WHEEL | 1 | $53.95 | |
| 24 | 0604-730 | SPACER,REAR WHEEL | 1 | $21.95 | |
| 25 | 0604-968 | BUSHING,SPACER-REAR WHEEL | 1 | $9.59 | |
| 26 | 1604-685 | WHEEL,IDL-6.38(2-5/8DIA INSR) | 1 | $53.95 | |
| 27 | 0623-220 | WASHER,FLAT .625IDX1.50ODX.109 | 1 | $4.95 | |
| 28 | 1604-153 | HOUSING, REAR AXLE (97) | 1 | $29.95 | |
| 29 | 0604-206 | TRACK ADJUSTOR-MACHINED | 1 | $13.73 | |
| 30 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 31 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 32 | 0623-123 | SCREW,CAP-HEX-3/8-16X5 | 1 | $2.47 | |
| 33 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 34 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 35 | 0604-298 | SPACER,SHOCK LINK-Z&Y | 1 | $33.95 | |
| 36 | 0604-165 | BUSHING,REAR WHEEL-ADJ. | 1 | $10.97 | |
| 37 | 1604-692 | WHEEL,IDL-6.38 SPOKED(1L-5/8DIA INSR)GRN | 1 | $53.95 | |
| 38 | 1604-774 | INSERT,5/8 BORE X 2" (LONG) | 1 | $6.34 | |
| 39 | 0123-570 | WASHER,FLAT .390X1.38X.134 | 1 | $5.92 | |
| 40 | 0604-246 | CAP,IDLER WHEEL-BLACK (DP 1500) | 1 | $3.16 | |
| 41 | 8002-223 | SCREW,CAP-HH 3/8-16 X1.125 G5 Z&Y | 1 | $8.21 |
