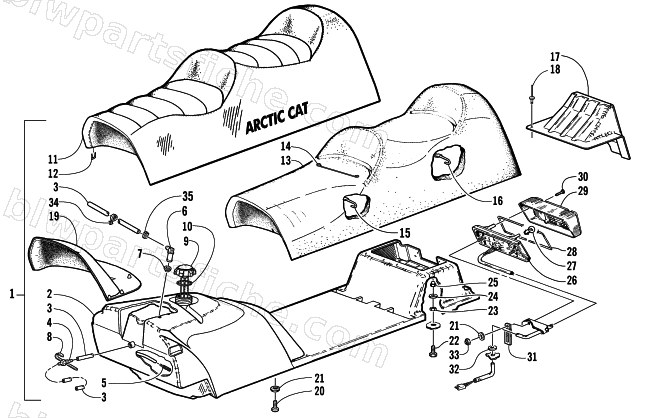

2003 Arctic Cat PANTHER 570 ESR — GAS TANK, SEAT, AND TAILLIGHT ASSEMBLY
2003 PANTHER 570 ESR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1718-357 | SEAT-03 PAN 570-S/P ASSY | 1 | $933.95 | |
| 2 | 0770-500 | TANK,GAS-ASSY-01 PAN 370/440 | 1 | $446.95 | |
| 3 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 3 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 4 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 5 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 6 | 1670-494 | ELBOW, 90 DEG-FUEL TANK | 1 | $3.99 | |
| 7 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 8 | 0670-289 | TAPE, TEFLON-ROLL | 1 | $6.34 | |
| 9 | 0670-658 | CAP,GAS-W/GAUGE | 1 | $45.95 | |
| 10 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 11 | 2706-106 | COVER, SEAT-W/AC DECAL-PA 570 | 1 | $594.95 | |
| 12 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 13 | 0716-991 | FOAM,SEAT-2UP(77-82IDL),44@8.0 | 1 | $268.95 | |
| 14 | 1606-150 | WIRE, SEAT | 1 | $3.02 | |
| 15 | 2606-943 | WIRE, SEAT (11.4)-BENT | 1 | $1.95 | |
| 16 | 2606-942 | WIRE, SEAT (8.0)-BENT | 1 | $2.47 | |
| 17 | 1606-191 | EXTENSION,TOOLBOX | 1 | $104.95 | |
| 18 | 0623-853 | RIVET, BLIND-.162 DIA X .040/.275 GRIP | 1 | $1.09 | |
| 19 | 1606-612 | INSERT, SEAT FOAM-LG | 1 | $31.95 | |
| 20 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 21 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 22 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 23 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 24 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 26 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 27 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 28 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 29 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 30 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 31 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 32 | 0617-136 | SEAL,FOAM-SEAT BASE | 1 | $2.06 | |
| 33 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 34 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 35 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 |
