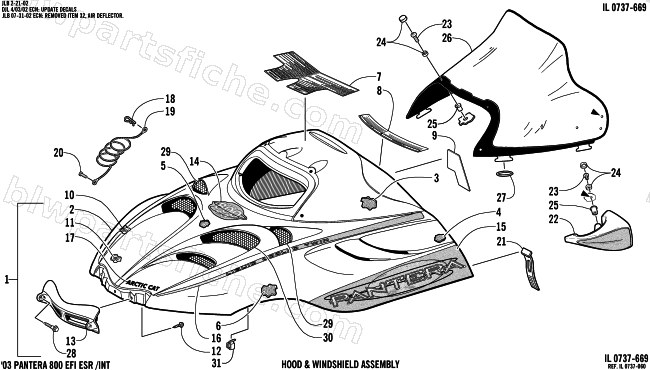

2003 Arctic Cat PANTERA 800 EFI ESR () — HOOD AND WINDSHIELD ASSEMBLY
2003 PANTERA 800 EFI ESR ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-316 | HOOD W/DECALS-03 PT 800 | 1 | $1,201.95 | |
| 2 | 1718-109 | HOOD W/O DECALS-02 PT 800 | 1 | $1,092.95 | |
| 4 | 0617-322 | FOAM,HOOD-UPPER RH | 1 | $42.95 | |
| 4 | 0617-323 | FOAM,HOOD-UPPER LH | 1 | $53.95 | |
| 5 | 0617-328 | FOAM,HOOD-MIDDLE | 1 | $26.95 | |
| 6 | 0617-326 | FOAM,HOOD-REAR RH | 1 | $17.95 | |
| 6 | 0617-327 | FOAM,HOOD-REAR LH | 1 | $29.95 | |
| 7 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 8 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 9 | 3611-580 | DECAL,REVERSE | 1 | $25.95 | |
| 10 | 2606-233 | FOIL, HOOD-UPR RH | 1 | $89.95 | |
| 11 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 11 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 12 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 13 | 1606-720 | HINGE, HOOD | 1 | $45.95 | |
| 14 | 4611-736 | DECAL, HOOD-CREST-800 | 1 | $39.95 | |
| 15 | 4611-702 | DECAL, HOOD-LOWER-RH-03 PT | 1 | $105.95 | |
| 15 | 4611-703 | DECAL, HOOD-LOWER-LH-03 PT | 1 | $105.95 | |
| 16 | 4611-704 | DECAL, HOOD-UPPER-RH-03 PT | 1 | $90.95 | |
| 16 | 4611-705 | DECAL, HOOD-UPPER-LH-03 PT | 1 | $90.95 | |
| 17 | 4611-731 | DECAL, HOOD-"AC" '03 Pantera | 1 | $20.95 | |
| 19 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 21 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 23 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 24 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 25 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 26 | 2606-366 | WINDSHIELD, MED-W/MIRROR HOLES | 1 | $200.95 | |
| 27 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 28 | 0623-690 | SCREW,HDHS-1/4-20X1.240 Z&Y | 1 | $24.77 | |
| 29 | 2706-194 | SCREEN,VENT-HOOD-R/H-PTD PLATINUM | 1 | $39.95 | |
| 29 | 2706-195 | SCREEN,VENT-HOOD-LH-UPPER-PTD PLATINUM | 1 | $17.95 | |
| 30 | 2606-325 | SCREEN, VENT HOOD-LH-CTR/SLV | 1 | $64.95 | |
| 31 | 0123-394 | CLIP CABLE | 1 | $1.37 |
