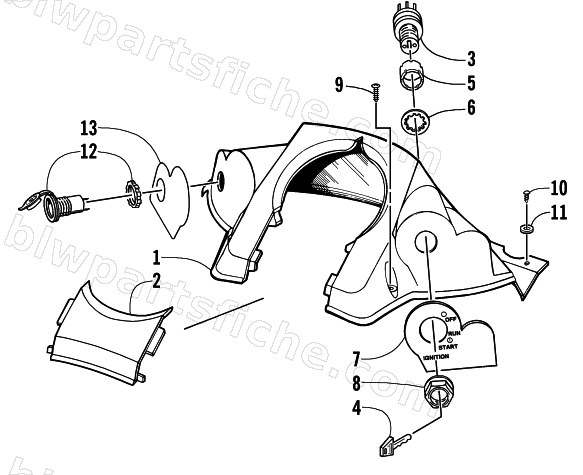

2003 Arctic Cat PANTERA 800 EFI ESR () — CONSOLE AND SWITCH ASSEMBLY
2003 PANTERA 800 EFI ESR ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2606-449 | CONSOLE, IGN-EFI-MULTI KEY-BLK CHERRY | 1 | $38.95 | |
| 2 | 2606-410 | DOOR, CONSOLE- BLK CHERRY | 1 | $36.95 | |
| 3 | 0609-449 | SWITCH,IGN-MULTI KEY | 1 | $56.95 | |
| 6 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 7 | 4611-502 | DECAL, CONSOLE SWITCH-RH | 1 | $89.95 | |
| 8 | 0609-113 | NUT,RETAINING 13/16-20 BLACK PLASTIC | 1 | $1.50 | |
| 9 | 0623-219 | SCREW,TAPPING 10-24X3/4 TYPE F,TYPE 1 CR | 1 | $0.68 | |
| 10 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 11 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 12 | 1639-371 | KIT, OUTLET 12V ACCESSORY | 1 | $47.95 | |
| 13 | 4611-501 | DECAL,CONSOLE-LH | 1 | $101.95 |
