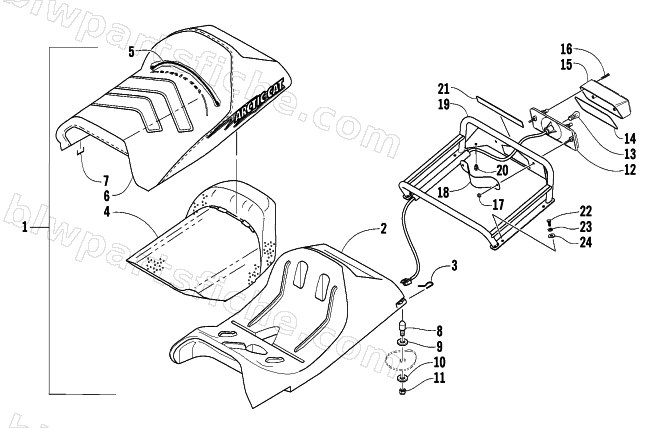

2003 Arctic Cat MOUNTAIN CAT 900 EARLY BUILD — SEAT, RACK, AND TAILLIGHT ASSEMBLY
2003 MOUNTAIN CAT 900 EARLY BUILD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1718-277 | SEAT-03 MC 900-SP ASSY | 1 | $554.95 | |
| 2 | 3606-193 | SEATBASE W/FOAM - INJ MOLD | 1 | $288.95 | |
| 3 | 1623-056 | CLIP,RETAINING SPRING-SEATBASE | 1 | $1.95 | |
| 4 | 1706-909 | FOAM, SEAT CUSHION-MC (73-78ILD).48@3.0 | 1 | $117.95 | |
| 5 | 1606-150 | WIRE, SEAT | 1 | $3.02 | |
| 6 | 1706-386 | COVER,SEAT-SIL-W/ARCTIC CAT (BLK/GRN) | 1 | $460.95 | |
| 7 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 8 | 1623-076 | STUD,LATCH-SEAT-D | 1 | $18.95 | |
| 9 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 10 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 11 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 12 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 13 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 14 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 15 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 16 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 17 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 18 | 2606-704 | PLATE,PROTECTOR-TAILLIGHT | 1 | $64.95 | |
| 20 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 21 | 3611-924 | DECAL, WARNING,-MAX LOAD | 1 | $16.95 | |
| 22 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 23 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 24 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 |
