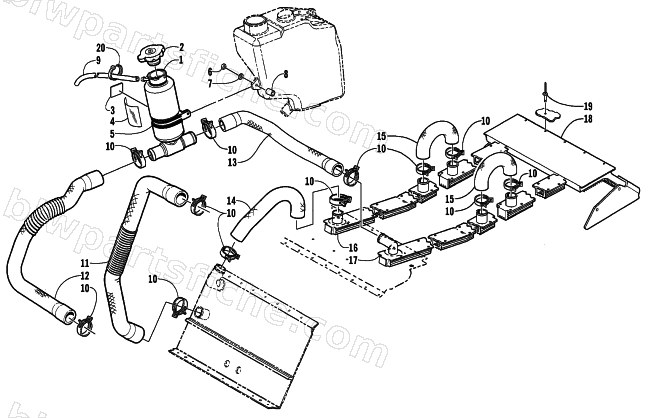

2003 Arctic Cat MOUNTAIN CAT 900 EARLY BUILD — COOLING ASSEMBLY
2003 MOUNTAIN CAT 900 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1606-396 | TANK,COOLANT-'ZR' STYLE | 1 | $41.95 | |
| 2 | 0606-268 | CAP,MINI RADIATOR-13LBS | 1 | $24.77 | |
| 3 | 2611-758 | DECAL,FILL LEVEL-COOLANT TANK | 1 | $11.95 | |
| 4 | 0706-548 | FOIL,3 X 12(0619-728) | 1 | $6.06 | |
| 5 | 0623-761 | CLAMP,COOLANT TANK | 1 | $6.89 | |
| 6 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 7 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 8 | 1623-045 | SPACER,COMPONENT PLATE | 1 | $2.75 | |
| 9 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 9 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 11 | 0610-475 | HOSE, COOLANT-THERMO/FRT EXCH-W/PROTECTO | 1 | $43.95 | |
| 12 | 0610-474 | HOSE,COOLANT-TANK/PUMP-W/PROTECTOR | 1 | $73.95 | |
| 13 | 0610-379 | HOSE,COOLANT-LH EXCH. TO TANK | 1 | $41.95 | |
| 14 | 0610-498 | HOSE,COOLANT-FRT EXCH TO RH EXCH | 1 | $34.95 | |
| 15 | 0610-441 | HOSE, HEAT-EXCHNGR - 156" M/C KIT | 1 | $41.95 | |
| 16 | 2706-016 | EXCHANGER,HEAT-FRT RH-WELD'T | 1 | $297.95 | |
| 17 | 2706-029 | EXCHANGER,HEAT-FRT LH-WELD'T | 1 | $245.95 | |
| 18 | 1706-832 | HEAT EXCH, REAR-151"-WELD'T | 1 | $451.95 | |
| 19 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 20 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
