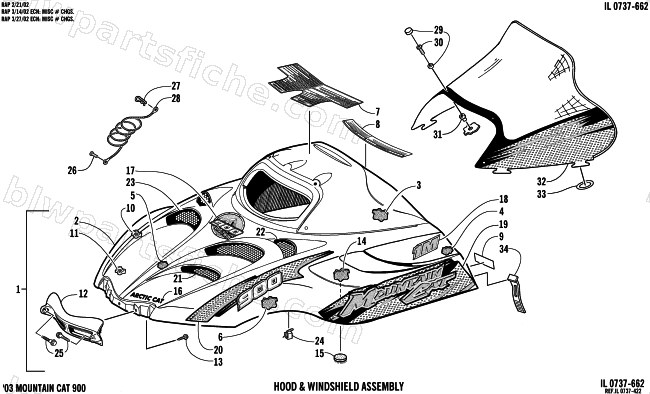

2003 Arctic Cat MOUNTAIN CAT 900 1M ( 159) — HOOD AND WINDSHIELD ASSEMBLY
2003 MOUNTAIN CAT 900 1M ( 159)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-371 | HOOD W/DECAL-MC 900-BLK/ORN | 1 | $1,201.95 | |
| 2 | 1718-370 | HOOD,W/O DECAL-03 MC-BLK (BLK HINGE) | 1 | $1,090.95 | |
| 4 | 0717-164 | FOAM, HOOD-UPR RH | 1 | $6.95 | |
| 4 | 0617-323 | FOAM,HOOD-UPPER LH | 1 | $53.95 | |
| 5 | 0617-328 | FOAM,HOOD-MIDDLE | 1 | $26.95 | |
| 6 | 0717-162 | FOAM, HOOD-REAR RH | 1 | $5.95 | |
| 6 | 0617-327 | FOAM,HOOD-REAR LH | 1 | $29.95 | |
| 7 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 8 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 9 | 3611-509 | DECAL, WARNING-SEATING CAPACITY | 1 | $72.95 | |
| 10 | 2606-233 | FOIL, HOOD-UPR RH | 1 | $89.95 | |
| 11 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 11 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 12 | 3606-032 | HINGE,HOOD-BLACK-ROUTED | 1 | $44.95 | |
| 13 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 14 | 0617-426 | FOAM, VENT-HOOD | 1 | $27.95 | |
| 15 | 0623-078 | DISC,VELCRO #8 | 1 | $1.95 | |
| 16 | 4611-749 | DECAL,"ARCTIC CAT"-HOOD-NOSE (BLK/RED) | 1 | $18.95 | |
| 17 | 5611-208 | DECAL,HOOD-CENTER-"900" (BLK/ORN) | 1 | $43.95 | |
| 18 | 4611-750 | DECAL,"1M"-HOOD (BLK/RED) | 1 | $20.95 | |
| 19 | 5611-204 | DECAL,HOOD-LOWER-R/H(BLK/ORN) | 1 | $99.95 | |
| 19 | 5611-205 | DECAL,HOOD-LOWER-L/H(BLK/ORN) | 1 | $99.95 | |
| 20 | 5611-206 | DECAL,HOOD-UPPER-R/H-"900"(BLK/ORN) | 1 | $101.95 | |
| 20 | 5611-207 | DECAL,HOOD-UPPER-L/H-"900"(BLK/ORN) | 1 | $101.95 | |
| 21 | 2606-325 | SCREEN, VENT HOOD-LH-CTR/SLV | 1 | $64.95 | |
| 22 | 2706-195 | SCREEN,VENT-HOOD-LH-UPPER-PTD PLATINUM | 1 | $17.95 | |
| 23 | 2706-194 | SCREEN,VENT-HOOD-R/H-PTD PLATINUM | 1 | $39.95 | |
| 24 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 25 | 1623-016 | SCREW, HEX DOME HEAD -1/4-20 x1.24 Z&Y | 1 | $27.95 | |
| 28 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 29 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 30 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 31 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 32 | 3606-031 | WINDSHIELD,FORMED-03 MC BLK/ORN | 1 | $171.95 | |
| 33 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 34 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 |
