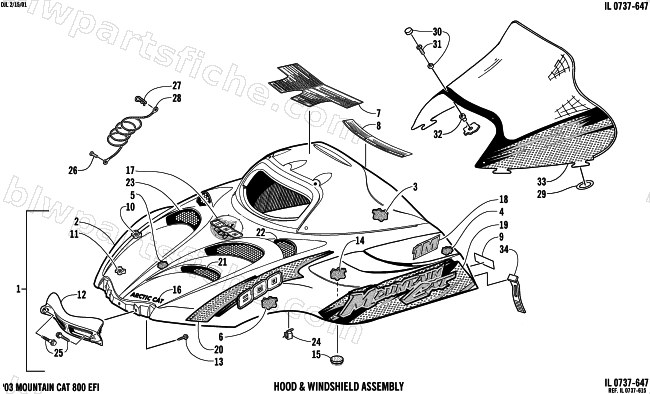

2003 Arctic Cat MOUNTAIN CAT 800 EFI () — HOOD AND WINDSHIELD ASSEMBLY
2003 MOUNTAIN CAT 800 EFI ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-196 | HOOD,W/DECAL-MC 800 EFI-BLK/GRN | 1 | $1,247.95 | |
| 1 | 1718-195 | HOOD,W DECAL-MC 800 EFI-BLK/RED | 1 | $1,201.95 | |
| 2 | 1718-352 | HOOD,W/O DECAL-03 MC-BLK | 1 | $1,090.95 | |
| 4 | 0717-164 | FOAM, HOOD-UPR RH | 1 | $6.95 | |
| 4 | 0617-323 | FOAM,HOOD-UPPER LH | 1 | $53.95 | |
| 5 | 0617-328 | FOAM,HOOD-MIDDLE | 1 | $26.95 | |
| 6 | 0717-162 | FOAM, HOOD-REAR RH | 1 | $5.95 | |
| 6 | 0617-327 | FOAM,HOOD-REAR LH | 1 | $29.95 | |
| 7 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 8 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 9 | 3611-509 | DECAL, WARNING-SEATING CAPACITY | 1 | $72.95 | |
| 10 | 2606-233 | FOIL, HOOD-UPR RH | 1 | $89.95 | |
| 11 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 11 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 12 | 2606-757 | HINGE,HOOD-PEWTER-ROUTED | 1 | $43.95 | |
| 13 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 14 | 0617-426 | FOAM, VENT-HOOD | 1 | $27.95 | |
| 15 | 0623-078 | DISC,VELCRO #8 | 1 | $1.95 | |
| 16 | 4611-535 | DECAL,"ARCTIC CAT"-HOOD-NOSE (BLK/GRN) | 1 | $42.95 | |
| 16 | 4611-749 | DECAL,"ARCTIC CAT"-HOOD-NOSE (BLK/RED) | 1 | $18.95 | |
| 17 | 4611-554 | DECAL, HOOD-CENTER-"800" (BLK/GRN) | 1 | $40.95 | |
| 17 | 4611-747 | DECAL,HOOD-CENTER-"800" (BLK/RED) | 1 | $40.95 | |
| 18 | 4611-737 | DECAL,HOOD-"1M" (BLK/GRN) | 1 | $19.25 | |
| 18 | 4611-750 | DECAL,"1M"-HOOD (BLK/RED) | 1 | $20.95 | |
| 19 | 4611-536 | DECAL, HOOD-LOWER-RH (BLK/GRN) | 1 | $40.95 | |
| 19 | 4611-537 | DECAL, HOOD-LOWER-LH (BLK/GRN) | 1 | $35.95 | |
| 19 | 4611-738 | DECAL,HOOD-LOWER-RH (BLK/RED) | 1 | $101.95 | |
| 19 | 4611-739 | DECAL,HOOD-LOWER-LH (BLK/RED) | 1 | $98.95 | |
| 20 | 4611-628 | DECAL,HOOD-UPPER-RH-"800" (BLK/GRN) | 1 | $91.95 | |
| 20 | 4611-629 | DECAL,HOOD-UPPER-LH-"800" (BLK/GRN) | 1 | $90.95 | |
| 20 | 4611-742 | DECAL,HOOD-UPPER-RH-"800"(BLK/RED) | 1 | $90.95 | |
| 20 | 4611-743 | DECAL,HOOD-UPPER-LH-"800"(BLK/RED) | 1 | $90.95 | |
| 21 | 2606-325 | SCREEN, VENT HOOD-LH-CTR/SLV | 1 | $64.95 | |
| 22 | 2706-195 | SCREEN,VENT-HOOD-LH-UPPER-PTD PLATINUM | 1 | $17.95 | |
| 23 | 2706-194 | SCREEN,VENT-HOOD-R/H-PTD PLATINUM | 1 | $39.95 | |
| 24 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 25 | 1623-016 | SCREW, HEX DOME HEAD -1/4-20 x1.24 Z&Y | 1 | $27.95 | |
| 28 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 29 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 30 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 31 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 32 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 33 | 2606-783 | WINDSHIELD,FORMED-03 MC BLK/RED | 1 | $246.95 | |
| 34 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 |
