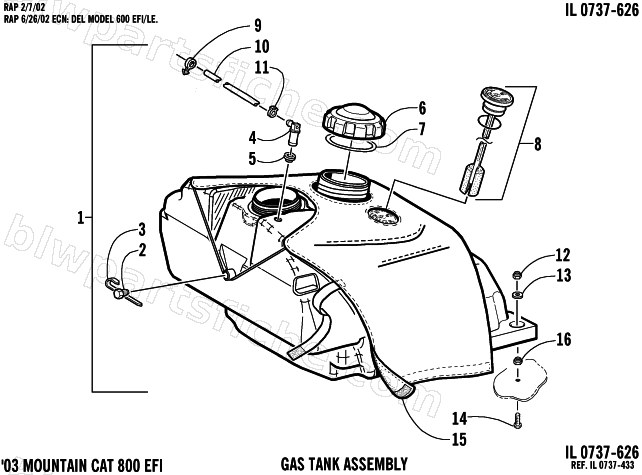

GAS TANK ASSEMBLY
2003 MOUNTAIN CAT 800 EFI ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-613 | TANK,GAS-03 MC 600-S/P ASSY | 1 | $414.95 | |
| 2 | 0670-243 | PLUG, GAS TANK-1/4 NPT | 1 | $1.92 | |
| 3 | 0670-289 | TAPE, TEFLON-ROLL | 1 | $6.34 | |
| 4 | 1670-494 | ELBOW, 90 DEG-FUEL TANK | 1 | $3.99 | |
| 5 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 6 | 0470-541 | CAP, FUEL - 3.5" | 1 | $46.95 | |
| 7 | 1670-228 | SEAL,GAS CAP | 1 | $26.95 | |
| 8 | 1670-241 | GAUGE, FUEL,W/GASKET - PRESS FIT | 1 | $102.95 | |
| 9 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 10 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 10 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 11 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 12 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 13 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 14 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 15 | 0705-424 | WRAP/PAD, GAS TANK-12 GAL W/ GUAGE | 1 | $77.95 | |
| 16 | 1623-077 | NUT,AL-1/4-20X3/4 HEX-0.25 THK | 1 | $3.85 |
