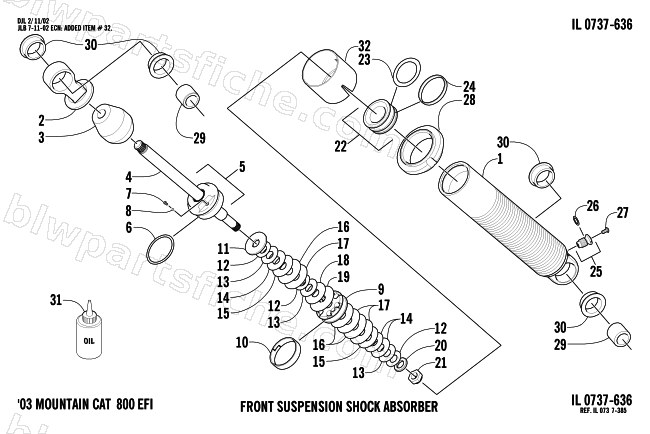

2003 Arctic Cat MOUNTAIN CAT 800 EFI () — FRONT SUSPENSION SHOCK ABSORBER
2003 MOUNTAIN CAT 800 EFI ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1703-090 | SHOCK,SKI-ASSY-FW-40" | 1 | $388.95 | |
| 1 | 1603-920 | BODY,SHOCK-SKI-FRICTION WELD'T | 1 | $409.95 | |
| 2 | 0603-920 | EYELET,1.012 x 1.637 x 2.26 | 1 | $98.95 | |
| 3 | 1603-405 | BUMPER,JOUNCE-BASF 415135-002 | 1 | $28.95 | |
| 4 | 1603-913 | ROD,SHOCK-SKI-7.808"-CHROME | 1 | $65.95 | |
| 5 | 0704-837 | END CAP,SHOCK-0.900 LG W/BLEED-ASSY | 1 | $75.95 | |
| 6 | 1604-271 | O-RING,OUTER | 1 | $2.47 | |
| 7 | 2604-277 | SCREW,SET-SS-8-32X5/64X.25 LG | 1 | $0.55 | |
| 8 | 2604-276 | BALL,CHECK-.125 | 1 | $1.95 | |
| 9 | 0603-953 | PISTON, .093 ORIFICE | 1 | $94.95 | |
| 10 | 1604-274 | STRAP, PISTON - TEFLON | 1 | $24.77 | |
| 11 | 1604-272 | WASHER, TOP OUT -1.125 x .094 | 1 | $1.37 | |
| 12 | 2603-055 | VALVE,SHOCK- .800 DIA X .010 | 1 | $5.95 | |
| 13 | 2603-065 | VALVE,SHOCK- .900 DIA X .010 | 1 | $5.95 | |
| 14 | 2603-075 | VALVE,SHOCK-1.000 DIA X .010 | 1 | $5.95 | |
| 15 | 2603-094 | VALVE,SHOCK-1.100 DIA X .008 | 1 | $5.95 | |
| 16 | 2603-122 | VALVE,SHOCK-1.250 DIA X .006 | 1 | $5.95 | |
| 17 | 2603-124 | VALVE,SHOCK-1.250 DIA X .008 | 1 | $5.95 | |
| 18 | 2603-092 | VALVE,SHOCK-1.100 DIA X .006 | 1 | $5.95 | |
| 19 | 2603-134 | VALVE,SHOCK-1.300 DIA X .008 | 1 | $5.95 | |
| 20 | 1604-273 | WASHER, BACKUP - .620 x .094 | 1 | $1.95 | |
| 21 | 0623-696 | NUT, FLEX - 3/8-24 UNF Z&Y | 1 | $2.95 | |
| 22 | 0704-791 | PISTON,BLEEDLESS-IFP-ASSY | 1 | $33.95 | |
| 23 | 2604-152 | O-RING,FLOATING PISTON | 1 | $2.88 | |
| 24 | 2604-153 | TEFLON BAND,FLOATING PISTON-1.459" | 1 | $26.95 | |
| 25 | 0704-796 | VALVE,PRESSURE-ASSY | 1 | $28.95 | |
| 26 | 0830-168 | ORING,7.6454 ID X 1.778 CS | 1 | $1.09 | |
| 27 | 0624-546 | SCREW,MACHINE-HSBH 6-32X1/4SS | 1 | $0.55 | |
| 28 | 1603-911 | NUT,SPRING ADJUSTER-GRAY | 1 | $5.95 | |
| 29 | 1603-209 | SLEEVE, EYELET - INNER - .790 TLG | 1 | $1.23 | |
| 30 | 0603-955 | BUSHING, SKI SHOCK-.045" LIP | 1 | $9.59 | |
| 31 | 4639-366 | S/M SHOCK OIL-1 QUART | 1 | $21.95 | |
| 32 | 2603-012 | SLEEVE,PROTECTOR-ALUM.SHOCK - BLK | 1 | $6.06 |
