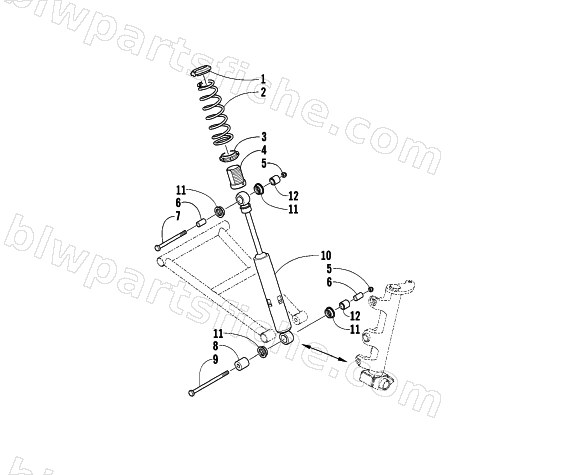

2003 Arctic Cat MOUNTAIN CAT 600 EFI () — FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY
2003 MOUNTAIN CAT 600 EFI ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 2 | 1703-257 | SPRING,COMP-SHOCK-110 LBS-9.5"-PTD GRN | 1 | $133.95 | |
| 2 | 1703-258 | SPRING,COMP-SHOCK-110 LBS-9.5"-PTD RED | 1 | $140.95 | |
| 3 | 0603-259 | NUT,RETAINER-SPRING | 1 | $5.65 | |
| 4 | 0603-147 | SLEEVE,THREADED-SHOCK | 1 | $60.95 | |
| 5 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 6 | 3604-594 | AXLE,SHOCK EYELET-10(ID)X20.7 MM | 1 | $4.40 | |
| 8 | 0603-648 | SPACER,SHOCK-MTG | 1 | $15.11 | |
| 9 | 8002-232 | SCREW,CAP-HH 3/8-16 X3.25 G5 Z&Y | 1 | $2.06 | |
| 10 | 2603-259 | SHOCK,SKI-FX (40") | 1 | $268.95 | |
| 11 | 0603-955 | BUSHING, SKI SHOCK-.045" LIP | 1 | $9.59 | |
| 12 | 1603-209 | SLEEVE, EYELET - INNER - .790 TLG | 1 | $1.23 |
