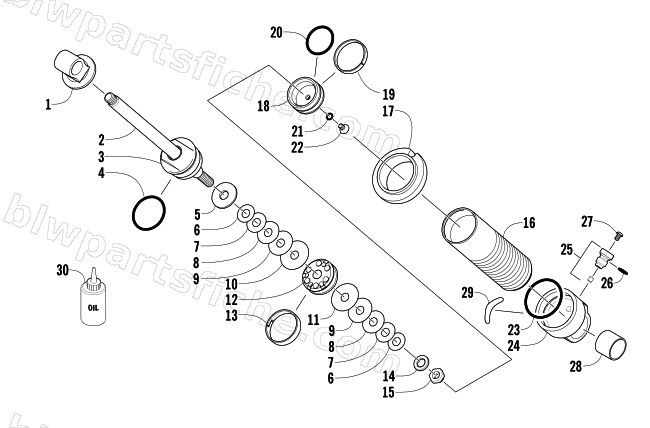

2003 Arctic Cat FIRECAT 700 EFI — REAR SUSPENSION FRONT ARM SHOCK ABSORBER
2003 FIRECAT 700 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1704-318 | SHOCK,FRT ARM-ZERO PRO (FOX) | 1 | $522.95 | |
| 1 | 1604-796 | EYELET, SHOCK - .630 DIA X .950 LGTH | 1 | $28.95 | |
| 2 | 2604-365 | SHAFT,SHOCK-CHROME-5.858 | 1 | $66.95 | |
| 3 | 0704-386 | ENDCAP - ASSY | 1 | $94.95 | |
| 4 | 1604-271 | O-RING,OUTER | 1 | $2.47 | |
| 5 | 1604-272 | WASHER, TOP OUT -1.125 x .094 | 1 | $1.37 | |
| 6 | 2603-055 | VALVE,SHOCK- .800 DIA X .010 | 1 | $5.95 | |
| 7 | 2603-065 | VALVE,SHOCK- .900 DIA X .010 | 1 | $5.95 | |
| 8 | 2603-075 | VALVE,SHOCK-1.000 DIA X .010 | 1 | $5.95 | |
| 9 | 2603-095 | VALVE,SHOCK-1.100 DIA X .010 | 1 | $5.95 | |
| 10 | 2603-135 | VALVE,SHOCK-1.300 DIA X .010 | 1 | $5.95 | |
| 11 | 2603-125 | VALVE,SHOCK-1.250 DIA X .010 | 1 | $5.51 | |
| 12 | 0603-953 | PISTON, .093 ORIFICE | 1 | $94.95 | |
| 13 | 1604-274 | STRAP, PISTON - TEFLON | 1 | $24.77 | |
| 14 | 1604-273 | WASHER, BACKUP - .620 x .094 | 1 | $1.95 | |
| 15 | 0623-696 | NUT, FLEX - 3/8-24 UNF Z&Y | 1 | $2.95 | |
| 16 | 2604-363 | BODY,SHOCK-NI/TEFLON-5.473 | 1 | $114.95 | |
| 17 | 0603-960 | NUT, SPRING ADJUSTER | 1 | $3.95 | |
| 18 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 19 | 1604-278 | STRAP, FLOATING PISTON - TEFLON | 1 | $24.77 | |
| 20 | 1604-277 | O-RING, FLOATING PISTON | 1 | $4.54 | |
| 21 | 0423-182 | O-RING,-008 (3/16X5/16X1/16) | 1 | $1.23 | |
| 22 | 0623-697 | SCREW, MACH - HSFH 10-24X3/8 BLK | 1 | $0.25 | |
| 23 | 1604-280 | O-RING,END CAP | 1 | $3.02 | |
| 24 | 1604-294 | END CAP, SHOCK - W/LUGS | 1 | $141.95 | |
| 25 | 0704-383 | VALVE, PRESSURE - ASSY | 1 | $14.95 | |
| 26 | 1604-284 | O-RING, PRESSURE VALVE | 1 | $1.95 | |
| 27 | 0624-433 | SCREW, MACH - HSBH 8-32X1/4 SS | 1 | $0.68 | |
| 28 | 1604-791 | BUSHING,SHOCK-.890ID X .800 | 1 | $15.11 | |
| 29 | 3611-007 | DECAL,SHOCK-WARNING | 1 | $12.35 | |
| 30 | 4639-367 | S/M SYN SHOCK OIL LIGHT WT-1 QUART | 1 | $27.99 |
