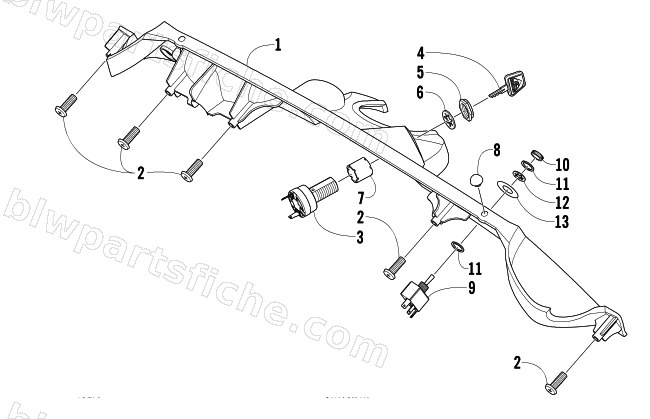

2003 Arctic Cat FIRECAT 700 EFI — CONSOLE AND SWITCH ASSEMBLY
2003 FIRECAT 700 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2606-955 | CONSOLE,EFI | 1 | $52.95 | |
| 2 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 3 | 0609-286 | SWITCH, IGNITION NORM OPEN | 1 | $66.95 | |
| 5 | 0609-113 | NUT,RETAINING 13/16-20 BLACK PLASTIC | 1 | $1.50 | |
| 6 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 8 | 1612-287 | BUMPER,MOLDED-RUBBER(CHASSIS) | 1 | $3.16 | |
| 9 | 0609-903 | SWITCH,TOGGLE-SPDT | 1 | $27.95 | |
| 10 | 0609-220 | NUT,KNURLED-BLACK (BRASS) | 1 | $1.95 | |
| 11 | 0623-153 | WASHER,NYLON 1/2X5/8-.030 | 1 | $2.95 | |
| 12 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 13 | 5611-144 | PLATE,CONSOLE-EFI ONLY | 1 | $23.95 |
