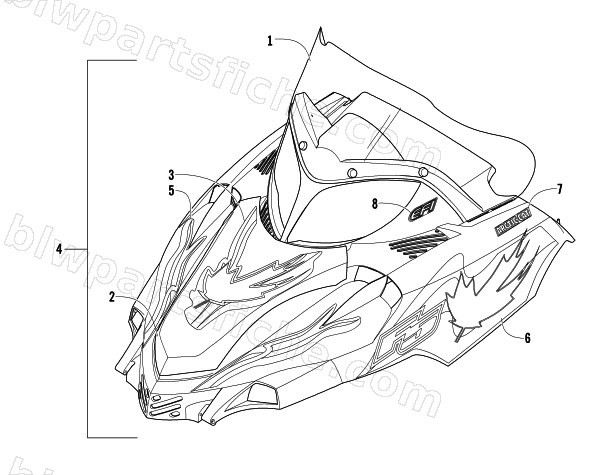

2003 Arctic Cat FIRECAT 700 EFI SNO PRO — HOOD AND WINDSHIELD ASSEMBLY
2003 FIRECAT 700 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2606-834 | WINDSHIELD,LOW-CHROME | 1 | $298.95 | |
| 1 | 1718-259 | HOOD-W/DECALS(700 GRN) | 1 | $1,169.95 | |
| 1 | 1718-260 | HOOD-W/DECALS(700 BLK) | 1 | $1,169.95 | |
| 1 | 1718-261 | HOOD-W/DECALS(700 RED) | 1 | $1,169.95 | |
| 2 | 1718-303 | COVER,HOOD-W/DECALS(TA 700 GRN) | 1 | $253.95 | |
| 2 | 1718-304 | COVER,HOOD-W/DECALS(TA 700 BLK) | 1 | $244.95 | |
| 2 | 1718-305 | COVER,HOOD-W/DECALS(TA 700 RED) | 1 | $222.95 | |
| 2 | 1718-325 | COVER,HOOD-W/DECALS(CA 500/700 GRN) | 1 | $184.95 | |
| 2 | 1718-326 | COVER,HOOD-W/DECALS(CA 500/700 BLK) | 1 | $184.95 | |
| 2 | 1718-327 | COVER,HOOD-W/DECALS(CA 500/700 RED) | 1 | $190.95 | |
| 2 | 1718-299 | COVER,HOOD-W/DECALS(PA 500/700 BLUE) | 1 | $210.95 | |
| 2 | 1718-296 | COVER,HOOD-W/DECALS(SC 500/700 GRN) | 1 | $221.95 | |
| 2 | 1718-297 | COVER,HOOD-W/DECALS(SC 500/700 BLK) | 1 | $221.95 | |
| 2 | 1718-298 | COVER,HOOD-W/DECALS(SC 500/700 RED) | 1 | $221.95 | |
| 2 | 1718-218 | HOOD,W/O DECALS(FIRECAT GRN) | 1 | $1,090.95 | |
| 2 | 1718-237 | HOOD,W/O DECALS(F2 BLK) | 1 | $1,090.95 | |
| 2 | 1718-270 | HOOD-W/O DECALS(RED) | 1 | $1,090.95 | |
| 3 | 4611-998 | DECAL,COVER-UPR "ARCTIC CAT" | 1 | $33.95 | |
| 3 | 5611-062 | DECAL,COVER-CREST GRN | 1 | $70.95 | |
| 3 | 5611-064 | DECAL,COVER-CREST BLK | 1 | $52.95 | |
| 3 | 5611-063 | DECAL,COVER-CREST RED | 1 | $54.95 | |
| 3 | 2706-041 | COVER,HOOD-SNOW SEP-PTD PATRIOT BLUE | 1 | $165.95 | |
| 3 | 4611-963 | DECAL,HOOD-CREST GRN | 1 | $54.95 | |
| 3 | 4611-962 | DECAL,HOOD-CREST BLK | 1 | $54.95 | |
| 3 | 4611-964 | DECAL,HOOD-CREST RED | 1 | $52.95 | |
| 3 | 0717-169 | FOAM, HOOD-CENTER FRT | 1 | $8.95 | |
| 4 | 4611-999 | DECAL,COVER-"F7" | 1 | $33.95 | |
| 4 | 1718-290 | HOOD-W/DECALS(CA 500 GRN) | 1 | $1,264.95 | |
| 4 | 1718-291 | HOOD-W/DECALS(CA 500 BLK) | 1 | $1,264.95 | |
| 4 | 1718-292 | HOOD-W/DECALS(CA 500 RED) | 1 | $1,264.95 | |
| 4 | 1718-293 | HOOD-W/DECALS(CA 700 GRN) | 1 | $1,264.95 | |
| 4 | 1718-294 | HOOD-W/DECALS(CA 700 BLK) | 1 | $1,264.95 | |
| 4 | 1718-295 | HOOD-W/DECALS(CA 700 RED) | 1 | $1,264.95 | |
| 4 | 5611-073 | DECAL,HOOD-CREST | 1 | $54.95 | |
| 4 | 4611-957 | DECAL,HOOD-NOSE"ARCTIC CAT" | 1 | $16.95 | |
| 4 | 4611-956 | DECAL,HOOD-NOSE"ARCTIC CAT" | 1 | $16.95 | |
| 4 | 4611-958 | DECAL,HOOD-NOSE"ARCTIC CAT" | 1 | $16.95 | |
| 4 | 0717-170 | FOAM, HOOD-REAR RH | 1 | $8.95 | |
| 4 | 0717-171 | FOAM, HOOD-REAR LH | 1 | $8.95 | |
| 5 | 5611-022 | DECAL,COVER-RH | 1 | $24.77 | |
| 5 | 5611-023 | DECAL,COVER-LH | 1 | $24.77 | |
| 5 | 5611-056 | DECAL,HOOD-FWD RH GRN | 1 | $35.95 | |
| 5 | 5611-057 | DECAL,HOOD-FWD LH GRN | 1 | $35.95 | |
| 5 | 5611-058 | DECAL,HOOD-FWD RH BLK | 1 | $33.95 | |
| 5 | 5611-059 | DECAL,HOOD-FWD LH BLK | 1 | $33.95 | |
| 5 | 5611-054 | DECAL,HOOD-FWD RH RED | 1 | $33.95 | |
| 5 | 5611-055 | DECAL,HOOD-FWD LH RED | 1 | $33.95 | |
| 5 | 1718-262 | HOOD-W/DECALS(PA 500 GRN) | 1 | $1,264.95 | |
| 5 | 1718-263 | HOOD-W/DECALS(PA 500 BLK) | 1 | $1,264.95 | |
| 5 | 1718-264 | HOOD-W/DECALS(PA 500 RED) | 1 | $1,185.95 | |
| 5 | 1718-339 | HOOD-W/DECALS(PA 700 GRN) | 1 | $1,264.95 | |
| 5 | 1718-340 | HOOD-W/DECALS(PA 700 BLK) | 1 | $1,264.95 | |
| 5 | 1718-341 | HOOD-W/DECALS(PA 700 RED) | 1 | $1,185.95 | |
| 5 | 1718-265 | HOOD-W/DECALS(SC 500 GRN) | 1 | $1,312.95 | |
| 5 | 1718-266 | HOOD-W/DECALS(SC 500/700 BLK) | 1 | $1,312.95 | |
| 5 | 1718-267 | HOOD-W/DECALS(SC 500 RED) | 1 | $1,201.95 | |
| 5 | 1718-342 | HOOD-W/DECALS(SC 700 GRN) | 1 | $1,312.95 | |
| 5 | 1718-343 | HOOD-W/DECALS(SC 700 BLK) | 1 | $1,201.95 | |
| 5 | 1718-344 | HOOD-W/DECALS(SC 700 RED) | 1 | $1,312.95 | |
| 5 | 0717-172 | FOAM, HOOD-REAR | 1 | $8.95 | |
| 6 | 1718-288 | HOOD-W/DECALS(TA 700 BLK) | 1 | $1,233.95 | |
| 6 | 1718-289 | HOOD-W/DECALS(TA 700 RED) | 1 | $1,233.95 | |
| 6 | 5611-032 | DECAL,HOOD-LWR RH "F5" | 1 | $89.95 | |
| 6 | 5611-033 | DECAL,HOOD-LWR LH "F5" | 1 | $92.95 | |
| 6 | 5611-030 | DECAL,HOOD-LWR RH "F7" | 1 | $89.95 | |
| 6 | 5611-031 | DECAL,HOOD-LWR LH "F7" | 1 | $97.95 | |
| 6 | 5611-066 | DECAL,HOOD-NOSE "ARCTIC CAT" | 1 | $16.49 | |
| 6 | 5611-065 | DECAL,NOSE-"ARCTIC CAT" | 1 | $16.95 | |
| 6 | 5611-067 | DECAL,HOOD-NOSE "ARCTIC CAT" | 1 | $16.95 | |
| 6 | 4611-974 | DECAL,HOOD-FWD GRN RH | 1 | $33.95 | |
| 6 | 4611-975 | DECAL,HOOD-FWD GRN LH | 1 | $162.95 | |
| 6 | 4611-948 | DECAL,HOOD-FWD BLK RH | 1 | $165.95 | |
| 6 | 4611-949 | DECAL,HOOD-FWD BLK LH | 1 | $165.95 | |
| 6 | 4611-982 | DECAL,HOOD-FWD RH RED | 1 | $33.95 | |
| 6 | 4611-983 | DECAL,HOOD-FWD LH RED | 1 | $33.95 | |
| 6 | 4611-496 | DECAL, CAUTION/WARNING | 1 | $39.95 | |
| 7 | 5611-026 | DECAL,HOOD-FWD RH | 1 | $129.95 | |
| 7 | 5611-027 | DECAL,HOOD-FWD LH | 1 | $197.95 | |
| 7 | 5611-044 | DECAL,HOOD-UPR GRN "ARCTIC CAT" | 1 | $14.95 | |
| 7 | 5611-046 | DECAL,HOOD-UPR BLK "ARCTIC CAT" | 1 | $125.95 | |
| 7 | 5611-042 | DECAL,HOOD-UPR RED "ARCTIC CAT" | 1 | $16.95 | |
| 7 | 5611-074 | DECAL,HOOD-VENT RH | 1 | $16.49 | |
| 7 | 5611-075 | DECAL,HOOD-VENT LH | 1 | $16.49 | |
| 7 | 4611-976 | DECAL,HOOD-LWR GRN RH | 1 | $87.95 | |
| 7 | 4611-977 | DECAL,HOOD-LWR GRN LH | 1 | $89.95 | |
| 7 | 4611-950 | DECAL,HOOD-LWR BLK RH | 1 | $92.95 | |
| 7 | 4611-951 | DECAL,HOOD-LWR BLK LH | 1 | $209.95 | |
| 7 | 4611-984 | DECAL,HOOD-LWR RH RED | 1 | $89.95 | |
| 7 | 4611-985 | DECAL,HOOD-LWR LH RED | 1 | $89.95 | |
| 7 | 1623-026 | PIN,CLEVIS-1/4 | 1 | $33.95 | |
| 8 | 4611-994 | DECAL,HOOD-LWR RH GRN "F7" | 1 | $92.95 | |
| 8 | 4611-995 | DECAL,HOOD-LWR LH GRN "F7" | 1 | $87.95 | |
| 8 | 5611-006 | DECAL,HOOD-LWR RH BLK "F7" | 1 | $89.95 | |
| 8 | 5611-007 | DECAL,HOOD-LWR LH BLK "F7" | 1 | $89.95 | |
| 8 | 5611-014 | DECAL,HOOD-LWR RH RED "F7" | 1 | $89.95 | |
| 8 | 5611-015 | DECAL,HOOD-LWR LH RED "F7" | 1 | $89.95 | |
| 8 | 5611-100 | DECAL,HOOD LIGHT-GRN "EFI" | 1 | $20.63 | |
| 8 | 5611-048 | DECAL,HOOD LIGHT- BLK "EFI" | 1 | $20.63 | |
| 8 | 5611-050 | DECAL,HOOD LIGHT-RED "EFI" | 1 | $20.95 | |
| 8 | 5611-090 | DECAL,HOOD LIGHT-RH GRN | 1 | $20.95 | |
| 8 | 5611-091 | DECAL,HOOD LIGHT-LH GRN | 1 | $20.95 | |
| 8 | 5611-088 | DECAL,HOOD LIGHT-RH BLK | 1 | $20.95 | |
| 8 | 5611-089 | DECAL,HOOD LIGHT-LH BLK | 1 | $20.95 | |
| 8 | 5611-092 | DECAL,HOOD LIGHT-RH RED | 1 | $20.95 | |
| 8 | 5611-093 | DECAL,HOOD LIGHT-LH RED | 1 | $20.95 | |
| 8 | 4611-980 | DECAL,HOOD LIGHT-RH GRN | 1 | $20.95 | |
| 8 | 4611-981 | DECAL,HOOD LIGHT-LH GRN | 1 | $20.95 | |
| 8 | 4611-954 | DECAL,HOOD LIGHT-BLK RH | 1 | $20.63 | |
| 8 | 4611-955 | DECAL,HOOD LIGHT-BLK LH | 1 | $20.63 | |
| 8 | 4611-988 | DECAL,HOOD LIGHT-RH RED | 1 | $20.95 | |
| 8 | 4611-989 | DECAL,HOOD LIGHT-LH RED | 1 | $20.95 | |
| 8 | 0623-847 | CLIP, HAIRPIN | 1 | $0.95 | |
| 9 | 5611-024 | DECAL,HOOD-UPR RH | 1 | $34.95 | |
| 9 | 5611-025 | DECAL,HOOD-UPR LH | 1 | $34.95 | |
| 9 | 5611-069 | DECAL,HOOD-UPR GRN "ARCTIC CAT" | 1 | $163.95 | |
| 9 | 5611-068 | DECAL,HOOD-UPR BLK "ARCTIC CAT" | 1 | $16.49 | |
| 9 | 5611-070 | DECAL,HOOD-UPR RED "ARCTIC CAT" | 1 | $16.49 | |
| 9 | 4611-960 | DECAL,HOOD- GRN UPR "ARCTIC CAT" | 1 | $18.95 | |
| 9 | 4611-959 | DECAL,HOOD- BLK UPR "ARCTIC CAT" | 1 | $32.95 | |
| 9 | 4611-961 | DECAL,HOOD- RED UPR "ARCTIC CAT" | 1 | $16.95 | |
| 9 | 3606-130 | FOIL,HOOD-UPR LEFT | 1 | $16.95 | |
| 10 | 5611-018 | DECAL,HOOD LIGHT-RH "EFI" | 1 | $20.95 | |
| 10 | 5611-019 | DECAL,HOOD LIGHT-LH "EFI" | 1 | $20.95 | |
| 10 | 5611-078 | DECAL,HOOD-LWR RH GRN | 1 | $92.95 | |
| 10 | 5611-079 | DECAL,HOOD-LWR LH GRN | 1 | $89.95 | |
| 10 | 5611-076 | DECAL,HOOD-LWR RH BLK | 1 | $92.95 | |
| 10 | 5611-077 | DECAL,HOOD-LWR LH BLK | 1 | $92.95 | |
| 10 | 5611-080 | DECAL,HOOD-LWR RH RED | 1 | $86.95 | |
| 10 | 5611-081 | DECAL,HOOD-LWR LH RED | 1 | $97.95 | |
| 11 | 4611-900 | DECAL,HOOD-UPPER-GRN RH | 1 | $30.95 | |
| 11 | 4611-901 | DECAL,HOOD-UPPER-GRN LH | 1 | $30.95 | |
| 11 | 4611-902 | DECAL,HOOD-UPPER-BLK RH | 1 | $30.95 | |
| 11 | 4611-903 | DECAL,HOOD-UPPER-BLK LH | 1 | $30.95 | |
| 11 | 4611-904 | DECAL,HOOD-UPPER-RED RH | 1 | $29.95 | |
| 11 | 4611-905 | DECAL,HOOD-UPPER-RED LH | 1 | $29.95 | |
| 12 | 4611-876 | DECAL,HOOD-VENT GRN-RH | 1 | $18.95 | |
| 12 | 4611-877 | DECAL,HOOD-VENT GRN-LH | 1 | $18.95 | |
| 12 | 4611-894 | DECAL,HOOD-VENT-BLK RH | 1 | $18.95 | |
| 12 | 4611-895 | DECAL,HOOD-VENT-BLK LH | 1 | $18.95 | |
| 12 | 4611-940 | DECAL,HOOD-VENT RED-RH | 1 | $19.25 | |
| 12 | 4611-941 | DECAL,HOOD-VENT RED-LH | 1 | $19.25 | |
| 13 | 4611-858 | DECAL,CONSOLE-GRN RH | 1 | $20.63 | |
| 13 | 4611-859 | DECAL,CONSOLE-GRN LH | 1 | $19.25 | |
| 13 | 4611-860 | DECAL,CONSOLE-BLK RH | 1 | $166.95 | |
| 13 | 4611-861 | DECAL,CONSOLE-BLK LH | 1 | $20.63 | |
| 13 | 4611-862 | DECAL,CONSOLE-RED RH | 1 | $19.25 | |
| 13 | 4611-863 | DECAL,CONSOLE-RED LH | 1 | $19.25 | |
| 14 | 4611-852 | DECAL,HOOD-GRN EFI | 1 | $22.01 | |
| 14 | 4611-853 | DECAL,HOOD-BLK EFI | 1 | $22.01 | |
| 14 | 4611-854 | DECAL,HOOD-RED EFI | 1 | $22.01 | |
| 15 | 4611-886 | DECAL,HOOD-LWR RH-GRN"F7" | 1 | $197.95 | |
| 15 | 4611-887 | DECAL,HOOD-LWR LH-GRN"F7" | 1 | $78.95 | |
| 15 | 4611-888 | DECAL,HOOD-LWR RH-BLK"F7" | 1 | $82.95 | |
| 15 | 4611-889 | DECAL,HOOD-LWR LH-BLK"F7" | 1 | $82.95 | |
| 15 | 4611-890 | DECAL,HOOD-LWR RH-RED"F7" | 1 | $105.95 | |
| 15 | 4611-891 | DECAL,HOOD-LWR LH-RED"F7" | 1 | $105.95 | |
| 16 | 1718-253 | COVER,HOOD-W/DECALS(700 GRN) | 1 | $282.95 | |
| 16 | 1718-254 | COVER,HOOD-W/DECALS(700 BLK) | 1 | $306.95 | |
| 16 | 1718-255 | COVER,HOOD-W/DECALS(700 RED) | 1 | $253.95 | |
| 17 | 2706-030 | COVER,HOOD-SNOW SEPERATOR-PTD GRN | 1 | $165.95 | |
| 17 | 2706-031 | COVER,HOOD-SNOW SEPERATOR-PTD BLK | 1 | $574.95 | |
| 17 | 2706-042 | COVER,HOOD-SNOW SEP-PTD RED | 1 | $175.95 | |
| 18 | 4611-874 | DECAL,COVER-UPPER-GRN RH | 1 | $33.95 | |
| 18 | 4611-875 | DECAL,COVER-UPPER-GRN LH | 1 | $33.95 | |
| 18 | 4611-892 | DECAL,COVER-UPPER BLK-RH | 1 | $33.95 | |
| 18 | 4611-893 | DECAL,COVER-UPPER BLK-LH | 1 | $33.95 | |
| 18 | 4611-938 | DECAL,COVER-UPPER RED-RH | 1 | $33.95 | |
| 18 | 4611-939 | DECAL,COVER-UPPER RED-LH | 1 | $33.95 | |
| 19 | 4611-867 | DECAL,HOOD-CREST-GRN-"F7" | 1 | $39.95 | |
| 19 | 4611-868 | DECAL,HOOD-CREST-BLK-"F7" | 1 | $42.95 | |
| 19 | 4611-869 | DECAL,HOOD-CREST-RED-"F7" | 1 | $39.95 | |
| 20 | 3611-187 | DECAL, HOOD-"ARCTIC CAT"-BLK | 1 | $26.95 | |
| 20 | 4611-855 | DECAL,HOOD-"ARCTIC CAT" YELLOW | 1 | $13.73 | |
| 21 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 22 | 4611-856 | DECAL,HOOD-BLK-"AIRFORCE INDUCTION" | 1 | $16.49 | |
| 22 | 4611-923 | DECAL,HOOD-YEL-"AIR FORCE INDUCTION" | 1 | $16.49 | |
| 22 | 4611-857 | DECAL,HOOD-YLW-"AIRFORCE INDUCTION" | 1 | $16.49 | |
| 23 | 2606-801 | O-RING,HOOD | 1 | $5.92 | |
| 24 | 3606-150 | SCREEN,HOOD-AIR INTAKE | 1 | $79.95 | |
| 25 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 26 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 27 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 29 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 30 | 1623-052 | NUT,U | 1 | $0.95 | |
| 31 | 2606-726 | CABLE,HOOD-17.00 | 1 | $20.63 | |
| 32 | 0623-302 | SCREW,SELF TAP-HWH #12X1/2 TYPE | 1 | $0.26 | |
| 33 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 |
