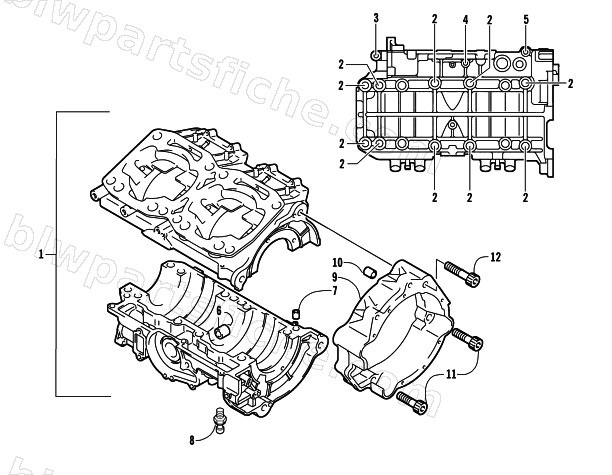

2003 Arctic Cat FIRECAT 700 EFI SNO PRO — CRANKCASE ASSEMBLY
2003 FIRECAT 700 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-497 | CRANKCASE ASSY | 1 | $1,246.95 | |
| 2 | 3006-488 | BOLT,10X87 | 1 | $5.65 | |
| 3 | 3007-409 | BOLT | 1 | $3.16 | |
| 4 | 3007-461 | BOLT | 1 | $5.09 | |
| 5 | 3004-442 | BOLT, 6X40 | 1 | $2.95 | |
| 6 | 3003-647 | BUSHING,OIL PUMP SHAFT,M10 | 1 | $24.77 | |
| 7 | 3005-206 | PIN (H:10),DOWEL | 1 | $3.30 | |
| 8 | 0630-141 | SWITCH,TEMP-L/C 200F | 1 | $58.95 | |
| 9 | 3006-967 | CASE,MAGNETO | 1 | $338.29 | |
| 10 | 3006-547 | PIN.KNOCK | 1 | $31.95 | |
| 11 | 3006-548 | BOLT | 1 | $4.95 | |
| 12 | 3006-549 | BOLT | 1 | $4.95 |
