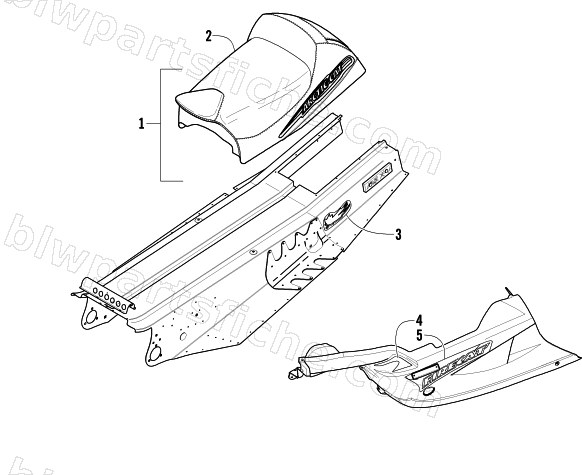

2003 Arctic Cat FIRECAT 700 EFI SNO PRO — BELLY PAN, TUNNEL, AND SEAT ASSEMBLIES
2003 FIRECAT 700 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 7996-957 | SEAT-MFG ASSY(CA 500/700 GRN) | 1 | $800.95 | |
| 1 | 7996-958 | SEAT-MFG ASSY(CA 500/700 BLK) | 1 | $762.95 | |
| 1 | 7996-959 | SEAT-MFG ASSY(CA 500/700 RED) | 1 | $800.95 | |
| 2 | 2706-083 | COVER,SEAT-W/DECALS(CA 500/700 GRN) | 1 | $685.95 | |
| 2 | 2706-084 | R/B 6706-403 | 1 | $512.95 | |
| 2 | 2706-085 | R/B 6706-403 | 1 | $518.95 | |
| 3 | 5611-052 | DECAL,TUNNEL-RH | 1 | $63.95 | |
| 3 | 5611-053 | DECAL,TUNNEL-LH | 1 | $63.95 | |
| 4 | 5611-034 | DECAL,BELLY PAN-UPR RH | 1 | $60.95 | |
| 4 | 5611-035 | DECAL,BELLY PAN-UPR LH | 1 | $60.95 | |
| 5 | 5611-038 | DECAL,BELLY PAN-LWR RH GRN | 1 | $64.95 | |
| 5 | 5611-039 | DECAL,BELLY PAN-LWR LH GRN | 1 | $64.95 | |
| 5 | 5611-040 | DECAL,BELLY PAN-LWR RH BLK | 1 | $64.95 | |
| 5 | 5611-041 | DECAL,BELLY PAN-LWR LH BLK | 1 | $64.95 | |
| 5 | 5611-036 | DECAL,BELLY PAN-LWR RH RED | 1 | $64.95 | |
| 5 | 5611-037 | DECAL,BELLY PAN-LWR LH RED | 1 | $66.95 |
