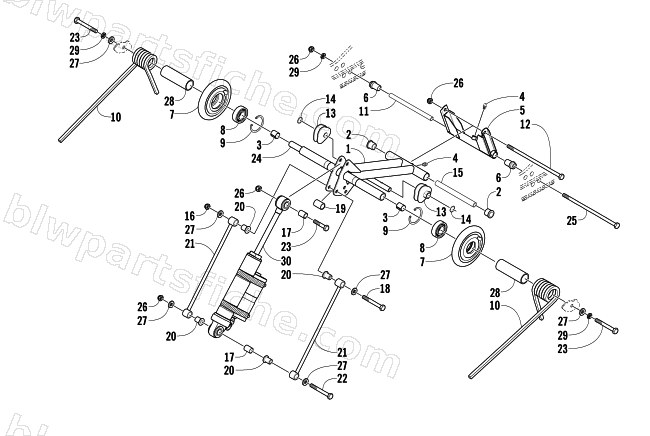

2003 Arctic Cat FIRECAT 500 SNO PRO — REAR SUSPENSION REAR ARM ASSEMBLY
2003 FIRECAT 500 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1704-005 | ARM, IDLER-FABR BLK | 1 | $231.95 | |
| 2 | 1604-100 | BUSHING,FLARED-BRONZE (.628 ID) | 1 | $6.75 | |
| 3 | 2604-147 | BEARING,GARLOCK-11DU14 | 1 | $8.21 | |
| 4 | 0623-922 | FITTING,GREASE-PRESS FIT W/CHK BALL | 1 | $1.92 | |
| 5 | 0704-727 | ARM, REAR-MACH-BLK (02 PROD) | 1 | $106.95 | |
| 6 | 1604-307 | AXLE,SERRATED-REAR ARM (NO BEARING) | 1 | $54.95 | |
| 7 | 2604-143 | WHEEL,IDL-5.35 W/1" ID (NO INSR) | 1 | $53.95 | |
| 8 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 9 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 10 | 0704-934 | SPRING,SUSPENSION-RH PTD BLK | 1 | $126.95 | |
| 10 | 0704-935 | SPRING,SUSPENSION-LH PTD BLK | 1 | $126.95 | |
| 12 | 1623-086 | SCREW,CAP-3/8-16 X 7.500 | 1 | $20.63 | |
| 13 | 1604-204 | BLOCK,SPRING-ADJUSTER-RH | 1 | $19.25 | |
| 13 | 1604-205 | BLOCK,SPRING-ADJUSTER-LH | 1 | $19.25 | |
| 14 | 0623-138 | RING,RETAINING-ADJ BLOCK 9/16 | 1 | $0.68 | |
| 15 | 2604-370 | AXLE,STEEL-.624X6.817 | 1 | $22.01 | |
| 16 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 17 | 1604-139 | SLEEVE,SHOCK EYELET-POWDER METAL | 1 | $2.06 | |
| 18 | 0623-793 | SCREW,CAP-HH 3/8-16X3.625 GR 5 Z&Y | 1 | $11.95 | |
| 19 | 0604-298 | SPACER,SHOCK LINK-Z&Y | 1 | $33.95 | |
| 20 | 1604-498 | AXLE,LINK-FLANGED(99 PRO) | 1 | $15.11 | |
| 21 | 0704-361 | LINK,REAR SHOCK-PTD BLK | 1 | $27.95 | |
| 22 | 8002-233 | SCREW,CAP-HH 3/8-16 X3.50 G5 Z&Y | 1 | $1.78 | |
| 24 | 2604-139 | AXLE,INNER CARRIAGE | 1 | $89.95 | |
| 25 | 0623-907 | SCREW, CAP-HH 3/8-16X10.0 GR5 Z&Y | 1 | $4.26 | |
| 26 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 27 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 28 | 2604-379 | SLEEVE,SPRING - 1.75" OD | 1 | $90.95 | |
| 29 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 30 | 0704-932 | SHOCK,REAR ARM-FOX | 1 | $654.95 |
